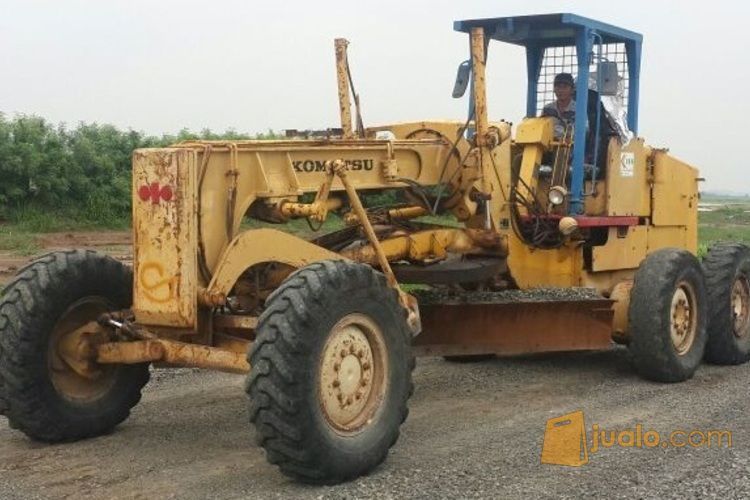

Komatsu GD510R-1
Browse All Komatsu or Motor Grader Models
Contents:
Dimensions
| Overall Length | 25.69 ft in (7830 mm) |
| Width Over Tires | 7.86 ft in (2395 mm) |
| Wheelbase | 18.97 ft in (5780 mm) |
| Tandem Axle Wheelbase | 5.04 ft in (1535 mm) |
| Front Ground Clearance | 1.2 ft in (365 mm) |
| Blade Base | 8.34 ft in (2540 mm) |
| Height To Top Of Isomount Cab | 11.44 ft in (3485 mm) |
Engine
| Number Of Cylinders | 6 |
| Net Power Gear 4-6 | 124.8 hp (93 kw) |
| Engine Make | 2238 |
| Engine Model | S6D95L |
| Power Measured @ | 2500 rpm |
| Max Power | 124.8 hp (93 kw) |
| Displacement | 298.5 cu in (4.9 L) |
Operational
| Std Operation Weight - Total | 23589.5 lb (10700 kg) |
| Fuel Capacity | 60 gal (227 L) |
| Tire Size | 13.00-24-8PR |
Steering
| Turning Radius | 34.2 ft in (10.4 m) |
Transmission
| Number Of Gears - Forward | 4 |
| Number Of Gears - Reverse | 4 |
| Max Speed - Forward | 26.7 mph (42.9 km/h) |
| Max Speed - Reverse | 16.6 mph (26.6 km/h) |
Front Axle
| Ground Clearance | 1.2 ft in (365 mm) |
Moldboard
| Moldboard Width | 12.2 ft in (3710 mm) |
| Moldboard Height | 25.4 in (645 mm) |
