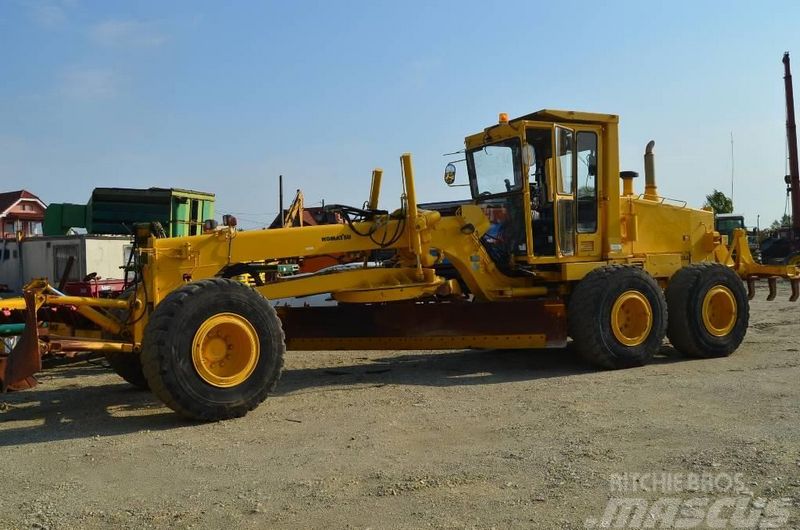

Komatsu GD705A-4
Browse All Komatsu or Motor Grader Models
Contents:
Dimensions
| Overall Length | 30.42 ft in (9270 mm) |
| Width Over Tires | 9.19 ft in (2800 mm) |
| Wheelbase | 21.17 ft in (6450 mm) |
| Rear Ground Clearance | 1.35 ft in (410 mm) |
| Tandem Axle Wheelbase | 5.68 ft in (1730 mm) |
| Blade Base | 9.52 ft in (2900 mm) |
| Height To Top Of Isomount Cab | 11.68 ft in (3560 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | S6D125 |
| Power Measured @ | 2000 rpm |
| Max Power | 199.9 hp (149 kw) |
| Net Power Gears 7-8 | 199.9 hp (149 kw) |
| Displacement | 674.4 cu in (11.1 L) |
Operational
| Std Operation Weight - Total | 38845.5 lb (17620 kg) |
| Fuel Capacity | 105.7 gal (400 L) |
| Tire Size | 16.00-24-12PR |
Steering
| Articulation Angle | 26 degrees |
| Turning Radius | 24.7 ft in (7.5 m) |
Transmission
| Number Of Gears - Forward | 8 |
| Max Speed - Forward | 26.8 mph (43 km/h) |
| Max Speed - Reverse | 28.6 mph (45.9 km/h) |
Front Axle
| Ground Clearance | 1.4 ft in (410 mm) |
Moldboard
| Moldboard Width | 14.2 ft in (4320 mm) |
| Moldboard Height | 27.6 in (700 mm) |
