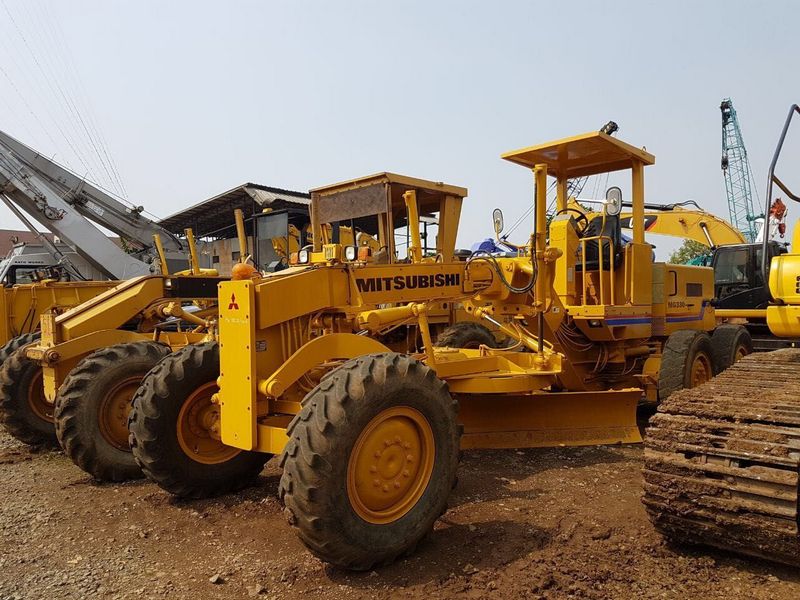

Mitsubishi MG330-E
Browse All Mitsubishi or Motor Grader Models
Contents:
Dimensions
| Overall Length | 25.66 ft in (7820 mm) |
| Width Over Tires | 8.04 ft in (2450 mm) |
| Wheelbase | 18.71 ft in (5700 mm) |
| Blade Base | 8.21 ft in (2500 mm) |
| Height To Top Of Isomount Cab | 10.27 ft in (3130 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2251 |
| Engine Model | 6D16-TE1 |
| Power Measured @ | 2200 rpm |
| Max Power | 135 hp (100.7 kw) |
| Displacement | 460.5 cu in (7.6 L) |
Operational
| Hydraulic System Fluid Capacity | 17.7 gal (67 L) |
| Std Operation Weight - Total | 34392.2 lb (15600 kg) |
| Oil System Fluid Capacity | 3.5 gal (13 L) |
| Fuel Capacity | 60.8 gal (230 L) |
| Transmission Fluid Capacity | 6.1 gal (23 L) |
| Circle Gearbox Fluid Capacity | 1 gal (3.5 L) |
| Tandem Case Fluid Capacity (Each) | 19.3 gal (73 L) |
| Tire Size | 14.00-24-12 |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 40 amps |
Steering
| Articulation Angle | 26 degrees |
Transmission
| Transmission Type | planetary |
| Number Of Gears - Forward | 6 |
| Number Of Gears - Reverse | 6 |
| Max Speed - Forward | 26.5 mph (42.6 km/h) |
| Max Speed - Reverse | 27 mph (43.3 km/h) |
Front Axle
| Wheel Lean | 20 degrees |
| Oscillation - Total | 30 degrees |
| Ground Clearance | 1.9 ft in (555 mm) |
Moldboard
| Moldboard Width | 12.2 ft in (3710 mm) |
| Moldboard Height | 24.1 in (610 mm) |
| Moldboard Thickness | 0.9 in (22 mm) |
Hydraulic System
| Pump Type | tandem gear |
| Pump Flow | 31.8 gal/min (120 L/min) |
| Relief Valve Pressure | 2.5 psi (17.2 kPa) |
Circle
| Rotation | 360 degrees |
| Shift Left | 74.5 in (1890 mm) |
| Shift Right | 74.9 in (1900 mm) |
| Max Lift Above Ground | 18.9 in (480 mm) |
| Blade Tip Angle - Front | 40 degrees |
| Blade Tip Angle - Rear | 5 degrees |
