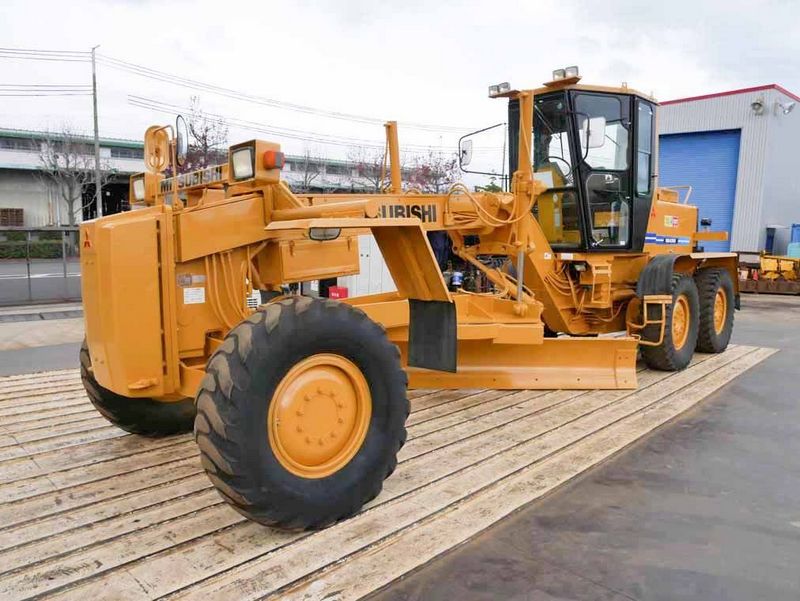

Mitsubishi MG430-E
Browse All Mitsubishi or Motor Grader Models
Contents:
Dimensions
| Overall Length | 27.91 ft in (8505 mm) |
| Width Over Tires | 8.11 ft in (2470 mm) |
| Wheelbase | 20.51 ft in (6250 mm) |
| Blade Base | 8.76 ft in (2670 mm) |
| Height To Top Of Isomount Cab | 10.27 ft in (3130 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2251 |
| Engine Model | 6D24-E1 |
| Power Measured @ | 2000 rpm |
| Max Power | 155 hp (115.6 kw) |
| Displacement | 729 cu in (12 L) |
Operational
| Hydraulic System Fluid Capacity | 17.7 gal (67 L) |
| Std Operation Weight - Total | 36155.9 lb (16400 kg) |
| Oil System Fluid Capacity | 4.3 gal (16 L) |
| Fuel Capacity | 55.5 gal (210 L) |
| Transmission Fluid Capacity | 6.1 gal (23 L) |
| Circle Gearbox Fluid Capacity | 1 gal (3.5 L) |
| Tandem Case Fluid Capacity (Each) | 7.4 gal (28 L) |
| Tire Size | 14.00-24-12 |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 40 amps |
Steering
| Articulation Angle | 29 degrees |
Transmission
| Transmission Type | planetary |
| Number Of Gears - Forward | 6 |
| Number Of Gears - Reverse | 6 |
| Max Speed - Forward | 28.1 mph (45.1 km/h) |
| Max Speed - Reverse | 28.6 mph (45.9 km/h) |
Front Axle
| Wheel Lean | 20 degrees |
| Oscillation - Total | 30 degrees |
| Ground Clearance | 2 ft in (600 mm) |
Moldboard
| Moldboard Height | 24.1 in (610 mm) |
| Moldboard Thickness | 0.9 in (22 mm) |
Hydraulic System
| Pump Type | tandem gear |
| Pump Flow | 26.5 gal/min (100 L/min) |
| Relief Valve Pressure | 2.5 psi (17.2 kPa) |
Circle
| Rotation | 360 degrees |
| Shift Left | 78 in (1980 mm) |
| Shift Right | 78.8 in (2000 mm) |
| Max Lift Above Ground | 19.3 in (490 mm) |
| Blade Tip Angle - Front | 40 degrees |
| Blade Tip Angle - Rear | 8 degrees |
