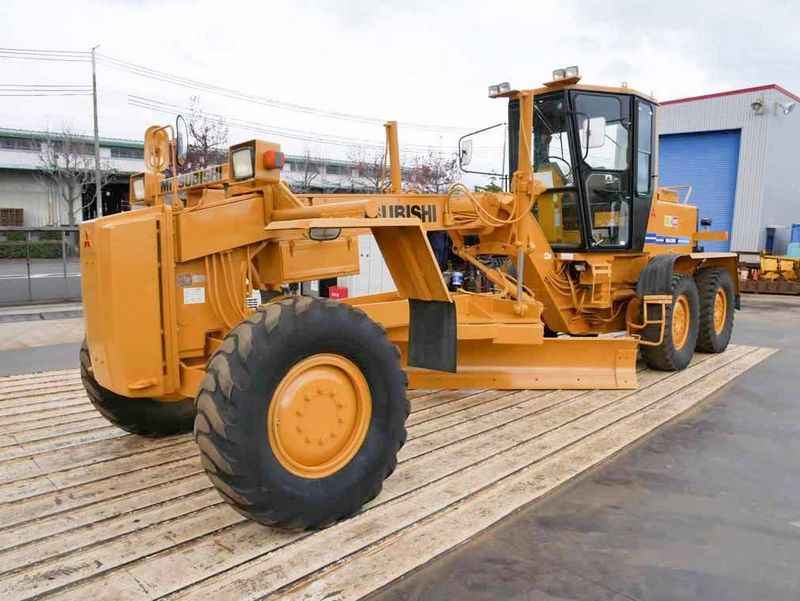

Mitsubishi MG430
Browse All Mitsubishi or Motor Grader Models
Contents:
Dimensions
| Overall Length | 27.81 ft in (8475 mm) |
| Width Over Tires | 7.94 ft in (2420 mm) |
| Wheelbase | 20.51 ft in (6250 mm) |
| Height To Top Of Isomount Cab | 10.08 ft in (3070 mm) |
Engine
| Engine Make | 2251 |
| Engine Model | C 6D16-T |
| Power Measured @ | 2000 rpm |
| Net Power Gear 5-6 | 155 hp (115.6 kw) |
| Max Power | 155 hp (115.6 kw) |
| Displacement | 460.5 cu in (7.6 L) |
Operational
| Std Operation Weight - Total | 26874.4 lb (12190 kg) |
| Tire Size | 13.00-24-10PR |
| Operating Voltage | 24 V |
Steering
| Turning Radius | 22.7 ft in (6.9 m) |
Transmission
| Transmission Type | power shift, planetary gear, hydraulically actuated |
| Number Of Gears - Forward | 6 |
| Number Of Gears - Reverse | 6 |
| Max Speed - Forward | 28.1 mph (45.1 km/h) |
| Max Speed - Reverse | 28.6 mph (45.9 km/h) |
Moldboard
| Moldboard Width | 12.2 ft in (3710 mm) |
| Moldboard Height | 24.1 in (610 mm) |
| Moldboard Thickness | 0.8 in (19 mm) |
