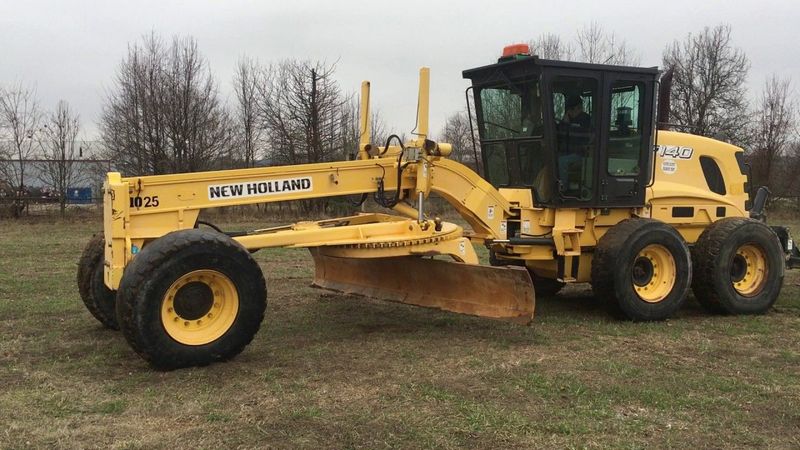

New Holland G140
Browse All New Holland or Motor Grader Models
Contents:
Dimensions
| Overall Length | 27.96 ft in (8521 mm) |
| Width Over Tires | 8.24 ft in (2510 mm) |
| Wheelbase | 20.41 ft in (6219 mm) |
| Rear Ground Clearance | 2.05 ft in (622 mm) |
| Tandem Axle Wheelbase | 5.23 ft in (1594 mm) |
| Front Ground Clearance | 1.25 ft in (378 mm) |
| Blade Base | 8.41 ft in (2562 mm) |
| Height To Top Of Isomount Cab | 10.31 ft in (3140 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSB 6.7L |
| Power Measured @ | 2200 rpm |
| Torque Measured @ | 1500 rpm |
| Max Power | 160 hp (119.4 kw) |
| Net Power Gears 7-8 | 160 hp (119.4 kw) |
| Net Torque Gears 7-8 | 550.3 lb ft (746 Nm) |
| Displacement | 408.9 cu in (6.7 L) |
| Aspiration | Turbocharged |
Operational
| Std Operation Weight - Front Axle | 8172 lb (3706.8 kg) |
| Hydraulic System Fluid Capacity | 47.5 gal (179.9 L) |
| Std Operation Weight - Rear Axle | 21746 lb (9863.9 kg) |
| Std Operation Weight - Total | 29918 lb (13570.6 kg) |
| Fuel Capacity | 90 gal (340.7 L) |
| Cooling System Fluid Capacity | 10.5 gal (39.8 L) |
| Transmission Fluid Capacity | 4.7 gal (17.8 L) |
| Circle Gearbox Fluid Capacity | 0.8 gal (2.9 L) |
| Tandem Case Fluid Capacity (Each) | 7.7 gal (29.2 L) |
| Tire Size | 14.00X24 10 Ply G2 |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
Steering
| Articulation Angle | 25 degrees |
| Turning Radius | 23786.1 ft in (7250 m) |
Transmission
| Transmission Type | Full power shift direct drive |
| Number Of Gears - Forward | 8 |
| Number Of Gears - Reverse | 4 |
| Max Speed - Forward | 26.6 mph (42.9 km/h) |
| Max Speed - Reverse | 17.7 mph (28.5 km/h) |
Front Axle
| Wheel Lean | 17.5 degrees |
| Oscillation - Total | 19 degrees |
| Ground Clearance | 2.1 ft in (622 mm) |
Moldboard
| Moldboard Width | 12 ft in (3657.6 mm) |
| Moldboard Height | 24.5 in (622 mm) |
| Moldboard Thickness | 0.9 in (22 mm) |
| Side Shift Left | 21 in (533 mm) |
| Side Shift Right | 28 in (711 mm) |
| Blade Down Pressure | 14788 lb (6707.8 kg) |
Hydraulic System
| Pump Type | Piston pump, variable displacement |
| Pump Flow | 49 gal/min (185.5 L/min) |
| Relief Valve Pressure | 2600 psi (17926.4 kPa) |
Circle
| Diameter | 69.1 in (1753 mm) |
| Rotation | 360 degrees |
| Max Reach Outside Tires - Left | 77.9 in (1978 mm) |
| Max Reach Outside Tires - Right | 85.6 in (2174 mm) |
| Max Lift Above Ground | 17.6 in (445 mm) |
| Blade Tip Angle - Front | 5 degrees |
| Blade Tip Angle - Rear | 42 degrees |
