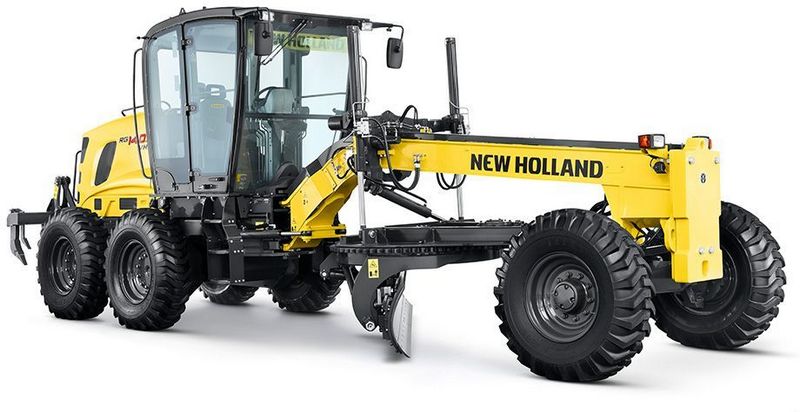

New Holland RG140.B
Browse All New Holland or Motor Grader Models
Contents:
Dimensions
| Overall Length | 27.96 ft in (8521 mm) |
| Width Over Tires | 8.25 ft in (2512 mm) |
| Wheelbase | 20.41 ft in (6219 mm) |
| Rear Ground Clearance | 1.25 ft in (378 mm) |
| Tandem Axle Wheelbase | 5.23 ft in (1594 mm) |
| Blade Base | 8.41 ft in (2562 mm) |
| Height To Top Of Isomount Cab | 10.31 ft in (3140 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2301 |
| Engine Model | Cummins 6A 5.9 |
| Power Measured @ | 2200 rpm |
| Net Power Gear 5-6 | 140 hp (104.4 kw) |
| Max Power | 140 hp (104.4 kw) |
| Net Power Gears 7-8 | 140 hp (104.4 kw) |
| Net Torque Gears 7-8 | 485 lb ft (657.6 Nm) |
| Displacement | 360.1 cu in (5.9 L) |
| Aspiration | Turbocharged |
Operational
| Std Operation Weight - Front Axle | 8157.2 lb (3700 kg) |
| Std Operation Weight - Rear Axle | 21400.3 lb (9707 kg) |
| Hydraulic System Fluid Capacity | 47.6 gal (180 L) |
| Std Operation Weight - Total | 29775.7 lb (13506 kg) |
| Max Operation Weight - Front Axle | 8157.2 lb (3700 kg) |
| Max Operation Weight - Rear Axle | 21620.8 lb (9807 kg) |
| Max Operation Weight - Total | 29775.7 lb (13506 kg) |
| Fuel Capacity | 90.1 gal (341 L) |
| Cooling System Fluid Capacity | 10.6 gal (40 L) |
| Transmission Fluid Capacity | 6.7 gal (25 L) |
| Rear Diff/Final Drive Fluid Capacity | 7.7 gal (29 L) |
| Circle Gearbox Fluid Capacity | 0.8 gal (2.8 L) |
| Tandem Case Fluid Capacity (Each) | 7.7 gal (29 L) |
| Tire Size | 14x24 12 ply G2 |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
Steering
| Articulation Angle | 25 degrees |
| Turning Radius | 23786.1 ft in (7250 m) |
Transmission
| Transmission Type | direct drive, power shift |
| Number Of Gears - Forward | 8 |
| Number Of Gears - Reverse | 4 |
| Max Speed - Forward | 26.7 mph (42.9 km/h) |
| Max Speed - Reverse | 18.7 mph (30 km/h) |
Front Axle
| Wheel Lean | 25 degrees |
| Oscillation - Total | 20 degrees |
| Ground Clearance | 2.1 ft in (610 mm) |
Moldboard
| Moldboard Width | 12.1 ft in (3658 mm) |
| Moldboard Height | 24.5 in (622 mm) |
| Moldboard Thickness | 0.9 in (22 mm) |
| Max Depth Of Cut | 28 in (711 mm) |
| Side Shift Left | 21 in (533 mm) |
| Side Shift Right | 27.1 in (686 mm) |
| Blade Down Pressure | 14627.7 lb (6635 kg) |
Hydraulic System
| Pump Type | full hydraulic, load sending, variable displacement piston |
| Pump Flow | 50.5 gal/min (191.2 L/min) |
| Relief Valve Pressure | 2600 psi (17926.4 kPa) |
Circle
| Diameter | 69.1 in (1753 mm) |
| Rotation | 360 degrees |
| Max Reach Outside Tires - Left | 77.9 in (1978 mm) |
| Max Reach Outside Tires - Right | 85.6 in (2174 mm) |
| Max Lift Above Ground | 17.6 in (445 mm) |
| Blade Tip Angle - Front | 42 degrees |
| Blade Tip Angle - Rear | 5 degrees |
