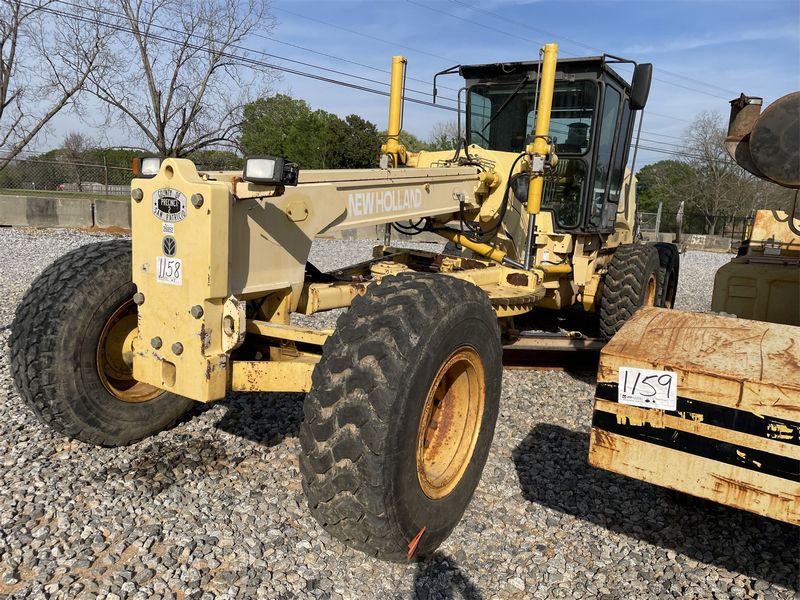

New Holland RG170.B
Browse All New Holland or Motor Grader Models
Contents:
Dimensions
| Overall Length | 30.55 ft in (9309 mm) |
| Width Over Tires | 8.25 ft in (2512 mm) |
| Wheelbase | 20.41 ft in (6219 mm) |
| Rear Ground Clearance | 1.25 ft in (378 mm) |
| Tandem Axle Wheelbase | 5.23 ft in (1594 mm) |
| Blade Base | 8.41 ft in (2562 mm) |
| Height To Top Of Isomount Cab | 10.31 ft in (3140 mm) |
Engine
| Net Power Gear 4-6 | 200 hp (149.2 kw) |
| Engine Make | 2347 |
| Engine Model | QSB 5.9 |
| Net Power Gear 1-2 | 170 hp (126.8 kw) |
| Net Power Gear 5-6 | 200 hp (149.2 kw) |
| Max Power | 200 hp (149.2 kw) |
| Net Power Gears 7-8 | 200 hp (149.2 kw) |
| Net Torque Gears 1-2 | 513 lb ft (695.6 Nm) |
| Net Torque Gears 3-4 | 636 lb ft (862.4 Nm) |
| Net Torque Gears 5-6 | 636 lb ft (862.4 Nm) |
| Net Torque Gears 7-8 | 636 lb ft (862.4 Nm) |
| Displacement | 360.1 cu in (5.9 L) |
| Aspiration | Turbocharged |
Operational
| Std Operation Weight - Front Axle | 9369.7 lb (4250 kg) |
| Std Operation Weight - Rear Axle | 22707.7 lb (10300 kg) |
| Hydraulic System Fluid Capacity | 47.6 gal (180 L) |
| Std Operation Weight - Total | 32077.3 lb (14550 kg) |
| Fuel Capacity | 90.1 gal (341 L) |
| Cooling System Fluid Capacity | 10.6 gal (40 L) |
| Transmission Fluid Capacity | 7.6 gal (28.5 L) |
| Rear Diff/Final Drive Fluid Capacity | 7.7 gal (29 L) |
| Circle Gearbox Fluid Capacity | 0.8 gal (2.8 L) |
| Tandem Case Fluid Capacity (Each) | 6 gal (22.7 L) |
| Tire Size | Fireston 14 x 24 10 ply 9" 1-pc. rim |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
Steering
| Articulation Angle | 25 degrees |
| Turning Radius | 23914.1 ft in (7289 m) |
Transmission
| Transmission Type | direct drive power shift |
| Number Of Gears - Forward | 8 |
| Number Of Gears - Reverse | 4 |
| Max Speed - Forward | 26.7 mph (42.9 km/h) |
| Max Speed - Reverse | 18.7 mph (30 km/h) |
Front Axle
| Wheel Lean | 48 degrees |
| Oscillation - Total | 20 degrees |
| Ground Clearance | 2.1 ft in (622 mm) |
Moldboard
| Moldboard Width | 12.1 ft in (3658 mm) |
| Moldboard Height | 24.5 in (622 mm) |
| Moldboard Thickness | 0.9 in (22 mm) |
| Max Depth Of Cut | 28 in (711 mm) |
| Side Shift Left | 21 in (533 mm) |
| Side Shift Right | 27.1 in (686 mm) |
| Blade Down Pressure | 20626 lb (9355.8 kg) |
Hydraulic System
| Pump Type | full hydraulic load sensing, variable displacement piston |
| Pump Flow | 49 gal/min (185.5 L/min) |
| Relief Valve Pressure | 2800 psi (19305.4 kPa) |
Circle
| Diameter | 69.1 in (1753 mm) |
| Rotation | 360 degrees |
| Max Reach Outside Tires - Left | 77.9 in (1978 mm) |
| Max Reach Outside Tires - Right | 85.6 in (2174 mm) |
| Max Lift Above Ground | 17.6 in (445 mm) |
| Blade Tip Angle - Front | 42 degrees |
| Blade Tip Angle - Rear | 90 degrees |
