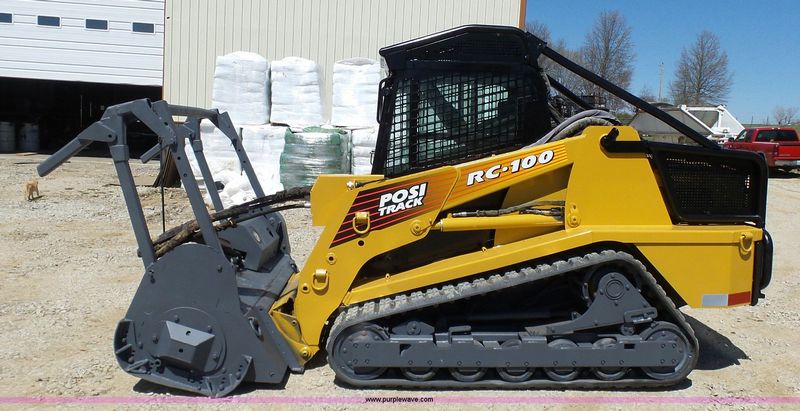

ASV RC100
Browse All ASV or Multi Terrain Loader Models
Contents:
Dimensions
| Width Over Tracks | 1.5 ft in (457 mm) |
| Height To Top Of Cab | 6.64 ft in (2023 mm) |
| Ground Clearance | 14 in (356 mm) |
| Length With Out Bucket | 9.8 ft in (2985 mm) |
| Length With Bucket | 12.34 ft in (3760 mm) |
Undercarriage
| Length Of Track On Ground | 6.05 ft in (1842 mm) |
| Ground Contact Area | 2610 in2 (1.68 m2) |
| Ground Pressure | 3.5 psi (24 kPa) |
| Number Of Track Rollers Per Side | 21 |
| Width Of Track | 14 in (356 mm) |
Engine
| Engine Make | 2351 |
| Engine Model | 1104C -44T |
| Gross Power | 99.5 hp (74 kw) |
| Power Measured @ | 2300 rpm |
| Peak Torque | 304 lb ft (412 Nm) |
| Displacement | 268 cu in (4.4 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 10150 lb (4604 kg) |
| Cooling System Fluid Capacity | 3.2 gal (12 L) |
| Fuel Capacity | 26 gal (98 L) |
| Engine Oil Capacity | 8.5 gal (8 L) |
| Hydraulic System Fluid Capacity | 20 gal (76 L) |
| Max Speed - Low Range | 6 mph (9.7 km/h) |
| Max Speed - High Range | 11.5 mph (18.5 km/h) |
Loader
| Operating Load | 3800 lb (1724 kg) |
| Tipping Angle | 7600 degrees |
Hydraulic
| Pump Flow | 38 gal/min (144 L/min) |
| Relief Valve Pressure | 3300 psi (22737 kPa) |
