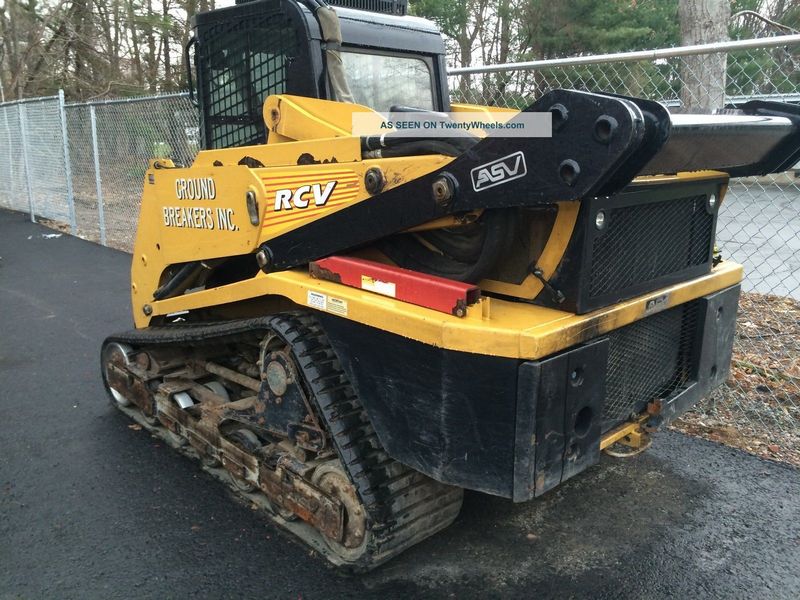

ASV RCV Vertical Lift
Browse All ASV or Multi Terrain Loader Models
Contents:
Dimensions
| Width Over Tracks | 5.76 ft in (1753 mm) |
| Height To Top Of Cab | 6.64 ft in (2023 mm) |
| Ground Clearance | 14.02 in (356 mm) |
| Clearance At Max Lift And Dump | 8.42 ft in (2565 mm) |
| Reach At Max Lift And Dump | 2.92 ft in (889 mm) |
| Length With Bucket | 12.73 ft in (3880 mm) |
| Length With Out Bucket | 9.8 ft in (2985 mm) |
Undercarriage
| Length Of Track On Ground | 6.05 ft in (1842 mm) |
| Track Gauge | 4.59 ft in (1397 mm) |
| Ground Contact Area | 2604.01 in2 (1.68 m2) |
| Width Of Track | 14.02 in (356 mm) |
| Ground Pressure | 3.6 psi (24.8 kPa) |
Engine
| Engine Make | 2351 |
| Engine Model | 1004C-44 |
| Gross Power | 86 hp (64.2 kw) |
| Power Measured @ | 2300 rpm |
| Peak Torque | 222 lb ft (301 Nm) |
| Displacement | 268 cu in (4.4 L) |
| Aspiration | naturally aspirated |
Operational
| Operating Weight | 10500 lb (4762.8 kg) |
| Cooling System Fluid Capacity | 3.2 gal (12 L) |
| Fuel Capacity | 26 gal (98.5 L) |
| Engine Oil Capacity | 2.2 gal (8 L) |
| Hydraulic System Fluid Capacity | 20.1 gal (76 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
| Max Speed - High Range | 6 mph (9.7 km/h) |
Loader
| Operating Load | 4000 lb (1814.4 kg) |
| Tipping Angle | 8000 degrees |
Hydraulic
| Pump Flow | 38 gal/min (143.9 L/min) |
| Relief Valve Pressure | 3300 psi (22752.7 kPa) |
