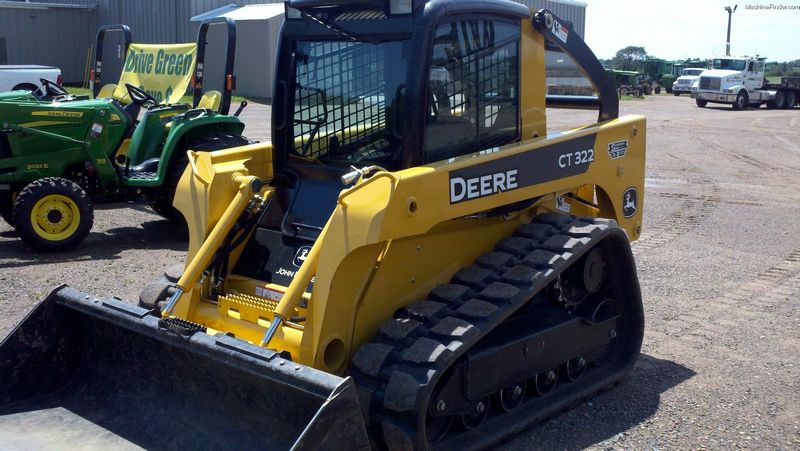

John Deere CT322
Browse All John Deere or Multi Terrain Loader Models
Contents:
Dimensions
| Width Over Tracks | 5.96 ft in (1816 mm) |
| Height To Top Of Cab | 6.41 ft in (1951 mm) |
| Ground Clearance | 9.61 in (244 mm) |
| Clearance At Max Lift And Dump | 7.57 ft in (2306 mm) |
| Reach At Max Lift And Dump | 2.66 ft in (808 mm) |
| Length With Bucket | 10.49 ft in (3195 mm) |
| Length With Out Bucket | 8.51 ft in (2591 mm) |
| Turning Radius From Center - Inc Bucket | 78.91 in (2004 mm) |
Undercarriage
| Track Gauge | 4.91 ft in (1496 mm) |
| Number Of Track Rollers Per Side | 4 |
| Width Of Track | 12.6 in (320 mm) |
| Ground Pressure | 5.1 psi (35.17 kPa) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Engine Model | 4024T |
| Gross Power | 66 hp (49.2 kw) |
| Net Power | 62 hp (46.2 kw) |
| Power Measured @ | 2800 rpm |
| Displacement | 149 cu in (2.4 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 8305 lb (3767 kg) |
| Fuel Capacity | 18 gal (68 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 70 amps |
| Max Speed - Low Range | 5.5 mph (8.9 km/h) |
| Max Speed - High Range | 8.5 mph (13.8 km/h) |
Loader
| Breakout Force | 6050 lb (2744.3 kg) |
| Operating Load | 2178.2 lb (988 kg) |
| Tipping Angle | 6400 degrees |
Hydraulic
| Pump Flow | 19 gal/min (72 L/min) |
| Relief Valve Pressure | 3450 psi (23786.9 kPa) |
