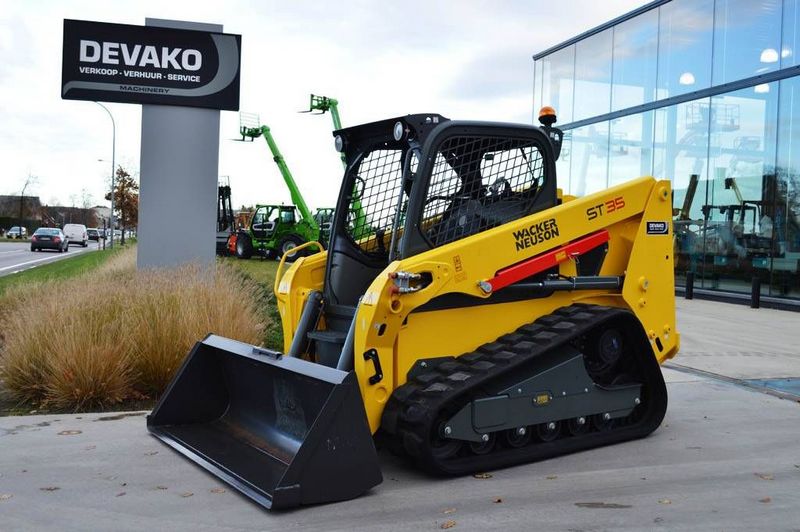

Wacker Neuson ST35
Browse All Wacker Neuson or Multi Terrain Loader Models
Contents:
Dimensions
| Width Over Tracks | 1.48 ft in (450 mm) |
| Height To Top Of Cab | 6.83 ft in (2080 mm) |
| Ground Clearance | 9.45 in (240 mm) |
| Length Of Track On Ground | 5.25 ft in (1600 mm) |
| Dump Reach | 21.74 in (552 mm) |
| Dump Height - Maximum | 95.24 in (2419 mm) |
| Hinge Pin Height - Fully Raised | 125.95 in (3199 mm) |
| Angle Of Departure | 30 degrees |
| Length With Bucket | 12.02 ft in (3662 mm) |
| Length With Out Bucket | 9.68 ft in (2948 mm) |
| Overall Height | 6.83 ft in (2080 mm) |
| Wheelbase | 5.25 ft in (1600 mm) |
| Width - No Bucket | 75.99 in (1930 mm) |
| Dump Angle | 45 degrees |
Engine
| Emission Tier Level | 4 |
| Engine Model | Perkins 854 |
| Gross Power | 74.3 hp (55.4 kw) |
| Aspiration | Turbo Charged |
Operational
| Operating Weight | 9826.1 lb (4457 kg) |
| Fuel Capacity | 24.7 gal (93.5 L) |
| Max Speed - Low Range | 4.3 mph (6.9 km/h) |
| Max Speed - High Range | 7.5 mph (12 km/h) |
Loader
| Rollback - Ground Level | 30.5 degrees |
| Boom Breakout Force | 6159.8 lb (27.4 kN) |
| Tipping Angle | 45 degrees |
| Bucket Width | 78 in (1981 mm) |
| Bucket Breakout Force | 6721.8 lb (29.9 kN) |
Hydraulic
| Pump Flow | 22.9 gal/min (86.5 L/min) |
| Relief Valve Pressure | 3335.9 psi (23000 kPa) |
