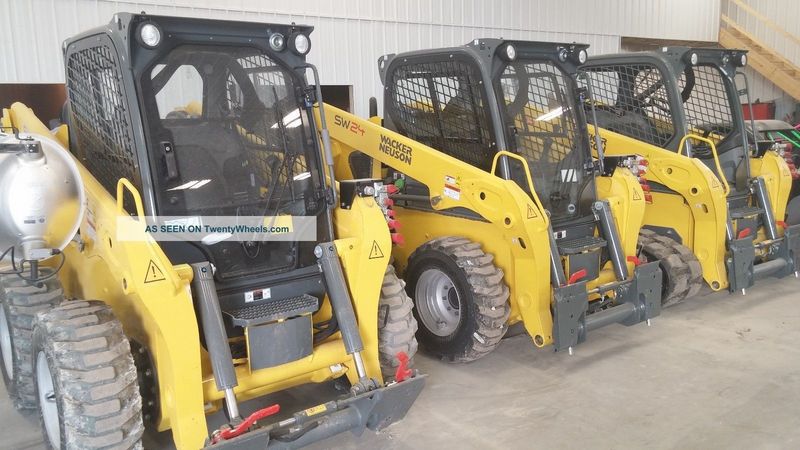

Wacker Neuson SW24
Browse All Wacker Neuson or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 12.02 ft in (3662 mm) |
| Width Over Tires | 5.84 ft in (1778 mm) |
| Ground Clearance | 9.45 in (240 mm) |
| Height To Top Of Cab | 6.83 ft in (2080 mm) |
| Wheelbase | 3.82 ft in (1164 mm) |
| Length W/O Bucket | 9.67 ft in (2947 mm) |
| Clearance At Max Lift And Dump | 7.94 ft in (2419 mm) |
| Reach At Max Lift And Dump | 22.6 in (574 mm) |
Engine
| Gross Power | 74 hp (55.2 kw) |
| Power Measured @ | 2750 rpm |
| Displacement | 151.5 cu in (2.5 L) |
Operational
| Operational Weight | 7865 lb (3567.6 kg) |
| Fuel Capacity | 24.3 gal (92 L) |
| Max Speed | 11.2 mph (18.1 km/h) |
| Hydraulic System Fluid Capacity | 22.5 gal (85.2 L) |
Loader
| Bucket Breakout Force (Iso 14397) | 6717 lb (3046.8 kg) |
| Boom Breakout Force | 5309 lb (23.7 kN) |
| Bucket Width | 72.1 in (1830 mm) |
Hydraulic
| Relief Valve Pressure | 3338 psi (23014.7 kPa) |
