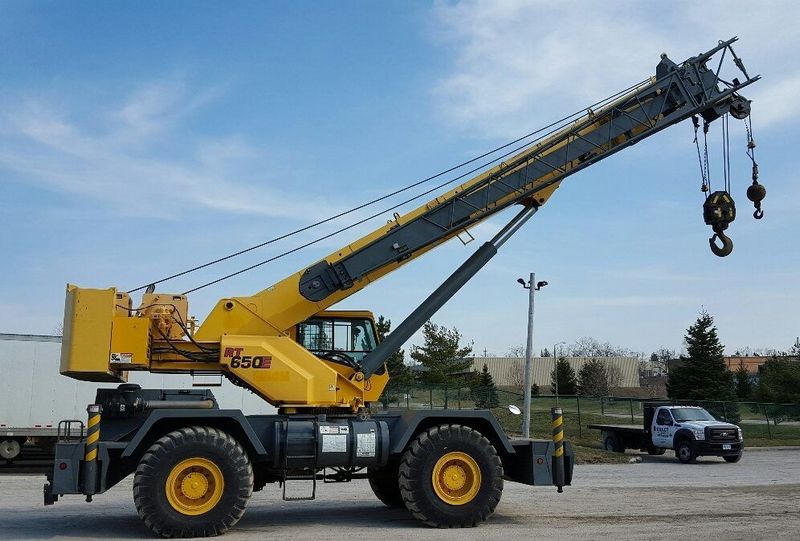

Grove RT650E
Browse All Grove or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 162 ft in (49.38 m) |
| Max Lift Capacity | 6000 lb (2721.56 kg) |
| Swing Speed | 2.5 rpm |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | 6BT |
| Gross Power | 173 hp (129 kw) |
| Power Measured @ | 2500 rpm |
| Max Torque | 530 lb ft (718.6 Nm) |
| Torque Measured @ | 1500 rpm |
| Displacement | 360.1 cu in (5.9 L) |
Operational
| Fuel Capacity | 58 gal (219.6 L) |
| Hydraulic System Fluid Capacity | 134 gal (507.3 L) |
Transmission
| Max Speed - Forward | 24 mph (38.7 km/h) |
Hydraulic System
| Relief Valve Setting | 3500 psi (24131.7 kPa) |
| Pump Flow Capacity | 103 gal/min (389.9 L/min) |
