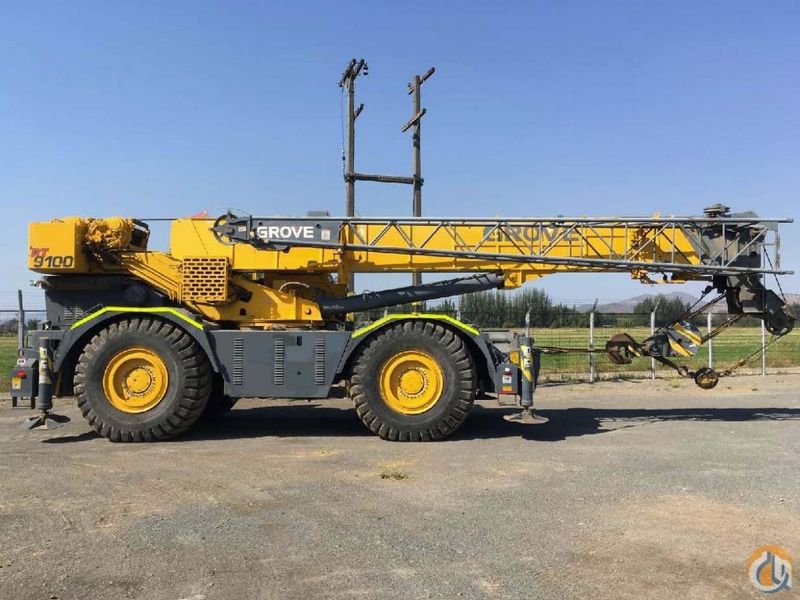

Grove RT9100
Browse All Grove or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 36 ft in (10.98 m) |
| Max Height @ Max Raise Angle - No Jib | 114 ft in (34.75 m) |
| Min Operating Radius | 10 ft in (3.05 m) |
| Max Elevating Angle | 80 degrees |
| Max Operating Radius | 100 ft in (30.48 m) |
| Swing Speed | 2 rpm |
| Max Lift Capacity | 200000 lb (90718.48 kg) |
| Number Of Sections | 4 |
Dimensions
| Transport Length | 45.57 ft in (13887 mm) |
| Transport Width | 12.34 ft in (3759 mm) |
| Transport Height | 13.61 ft in (4147 mm) |
| Wheelbase | 15.42 in (4699 mm) |
| Width W/ Outriggers Extended | 26.5 ft in (8077 mm) |
| Carrier/Base Length | 29.75 ft in (9067 m) |
| Upper Structure Tail Swing Radius | 14.25 ft in (4343 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | 6CTA |
| Gross Power | 249.5 hp (186 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 794 lb ft (1076.6 Nm) |
| Torque Measured @ | 1500 rpm |
| Displacement | 506.5 cu in (8.3 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 134458 lb (60989.2 kg) |
| Fuel Capacity | 100 gal (378.6 L) |
| Hydraulic System Fluid Capacity | 374.9 gal (1419 L) |
| Operating Voltage | 12 V |
| Tire Size | 33.25x35-32PR |
Transmission
| Transmission Type | full powershift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 6 |
| Max Speed - Forward | 16.2 mph (26 km/h) |
Weights
| Counterweight | 17800.2 lb (8074 kg) |
Hydraulic
| Maximum Operating Pressure | 2500 psi (17236.9 kPa) |
| Pump Flow Capacity | 281.5 gal/min (1065.6 L/min) |
