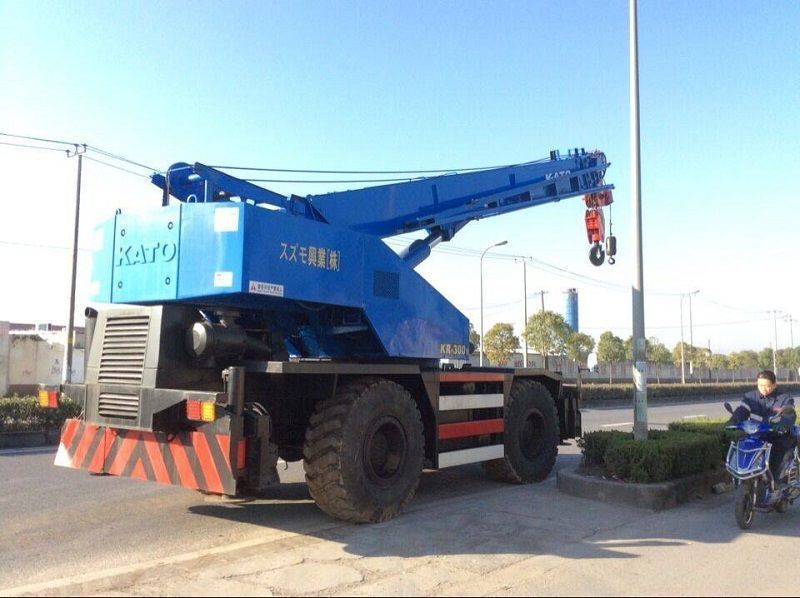

Kato KR300
Browse All Kato or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 39.38 ft in (12 m) |
| Max Height @ Max Raise Angle - No Jib | 104.99 ft in (32 m) |
| Min Operating Radius | 8.21 ft in (2.5 m) |
| Max Elevating Angle | 80 degrees |
| Max Operating Radius | 85.31 ft in (26 m) |
| Number Of Sections | 4 |
| Max Lift Capacity | 66138.68 lb (30000 kg) |
| Swing Speed | 3.5 rpm |
Dimensions
| Transport Length | 35.86 ft in (10930 mm) |
| Transport Width | 8.6 ft in (2620 mm) |
| Transport Height | 11.55 ft in (3520 mm) |
| Wheelbase | 10.83 in (3300 mm) |
| Width W/ Outriggers Extended | 20.35 ft in (6200 mm) |
Engine
| Engine Make | 2251 |
| Engine Model | 6D16T |
| Gross Power | 221.3 hp (165 kw) |
| Power Measured @ | 2800 rpm |
| Max Torque | 468.4 lb ft (635 Nm) |
| Torque Measured @ | 1600 rpm |
| Displacement | 460.5 cu in (7.6 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 56570.7 lb (25660 kg) |
| Fuel Capacity | 79.3 gal (300 L) |
| Hydraulic System Fluid Capacity | 118.9 gal (450 L) |
| Tire Size | 16.00-25-26PR |
Transmission
| Transmission Type | remote mounted full powershift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 6 |
| Max Speed - Forward | 35.5 mph (57 km/h) |
