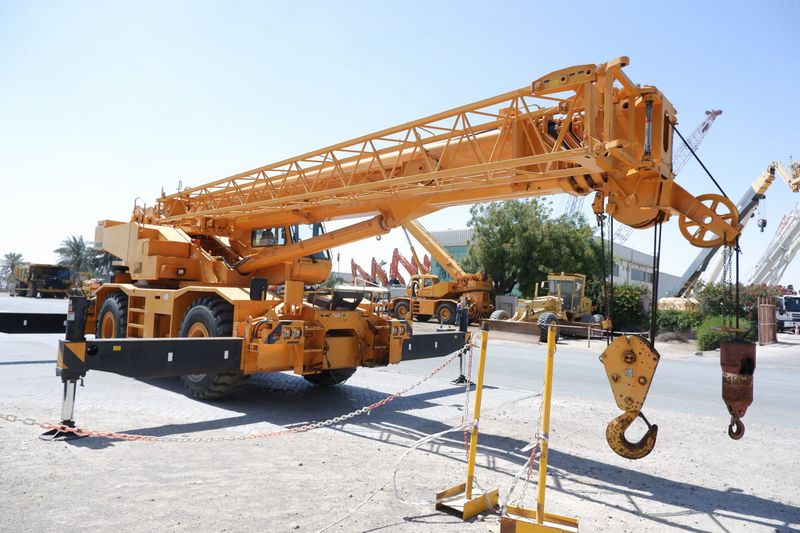

Tadano GR500XL
Browse All Tadano or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 35.11 ft in (10.7 m) |
| Max Height @ Max Raise Angle - No Jib | 113.85 ft in (34.71 m) |
| Min Operating Radius | 10 ft in (3.05 m) |
| Max Elevating Angle | 81 degrees |
| Max Operating Radius | 70 ft in (21.34 m) |
| Number Of Sections | 4 |
| Max Lift Capacity | 99999.92 lb (45359.2 kg) |
Dimensions
| Transport Length | 42.84 ft in (13055 mm) |
| Transport Width | 9.78 ft in (2980 mm) |
| Transport Height | 12.24 ft in (3730 mm) |
| Wheelbase | 149.61 in (3800 mm) |
| Ground Clearance | 1.32 ft in (400 mm) |
| Width W/ Outriggers Extended | 22.97 ft in (7000 mm) |
| Upper Structure Tail Swing Radius | 13.59 ft in (4140 mm) |
Engine
| Emission Tier Level | Tier 4 |
| Fuel Filter | Full flow with replaceable element |
| Number Of Cylinders | 6 |
| Cooling Method | Liquid pressurized, recirculating by-pass |
| Engine Make | Cummins |
| Engine Model | QSB6.7 |
| Engine Type | Direct injection diesel |
| Air Cleaner | Dry type, replaceable element |
| Max Torque | 730.2 lb ft (990 Nm) |
| Torque Measured @ | 1500 rpm |
| Displacement | 409 cu in (6.8 L) |
| Bore | 4.3 in (107 mm) |
| Stroke | 4.9 in (124 mm) |
| Oil Filter | Full flow with replaceable element |
Operational
| Def Tank Capacity | 10.1 gal (38 L) |
| Fuel Capacity | 79.3 gal (300 L) |
| Cooling System Fluid Capacity | 7.4 gal (28 L) |
Transmission
| Transmission Type | Electronically controlled |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 31.1 mph (50 km/h) |
