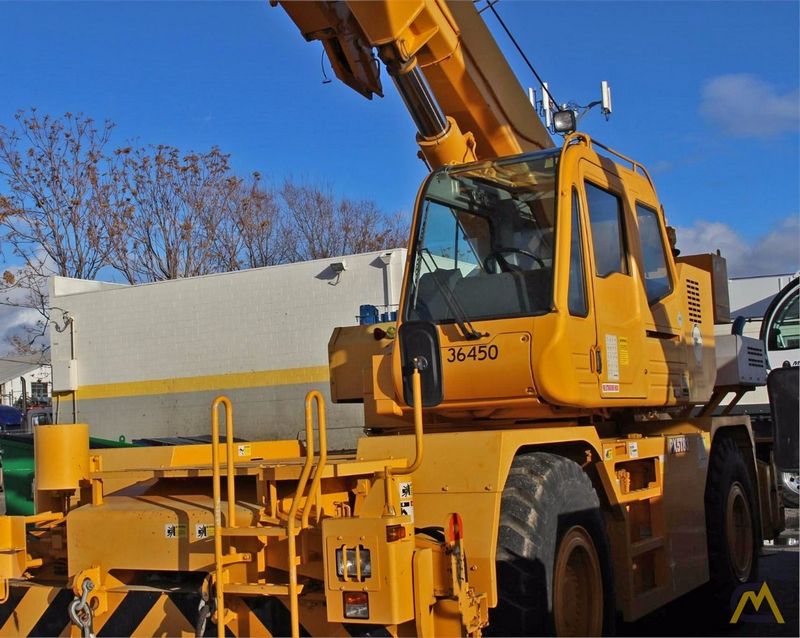

Tadano GR350XL-2
Browse All Tadano or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 31.83 ft in (9.7 m) |
| Max Height @ Max Raise Angle - No Jib | 101.71 ft in (31 m) |
| Max Elevating Angle | 81 degrees |
| Swing Speed | 3.2 rpm |
| Number Of Sections | 4 |
Dimensions
| Transport Length | 36.9 ft in (11245 mm) |
| Transport Width | 8.88 ft in (2705 mm) |
| Transport Height | 11.6 ft in (3535 mm) |
| Wheelbase | 137.8 in (3500 mm) |
| Ground Clearance | 1.22 ft in (370 mm) |
| Width W/ Outriggers Extended | 20.67 ft in (6300 mm) |
| Carrier/Base Length | 23950.14 ft in (7300 m) |
| Upper Structure Tail Swing Radius | 10.93 ft in (3330 mm) |
Engine
| Emission Tier Level | Tier 4i |
| Fuel Filter | Full flow with replaceable element |
| Number Of Cylinders | 6 |
| Cooling Method | Liquid pressurized, recirculating by-pass |
| Engine Make | Cummins |
| Engine Model | QSB6.7 |
| Gross Power | 214.6 hp (160 kw) |
| Air Cleaner | Dry type, replaceable element |
| Power Measured @ | 2500 rpm |
| Max Torque | 621.8 lb ft (843 Nm) |
| Torque Measured @ | 1600 rpm |
| Displacement | 408.9 cu in (6.7 L) |
| Bore | 4.3 in (107 mm) |
| Stroke | 4.9 in (124 mm) |
| Oil Filter | Full flow with replaceable element |
Operational
| Fuel Capacity | 79.3 gal (300 L) |
| Hydraulic System Fluid Capacity | 100.4 gal (380 L) |
| Operating Voltage | 24 V |
| Tire Size | 20.5-25 |
Transmission
| Transmission Type | Full powershift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 31.1 mph (50 km/h) |
