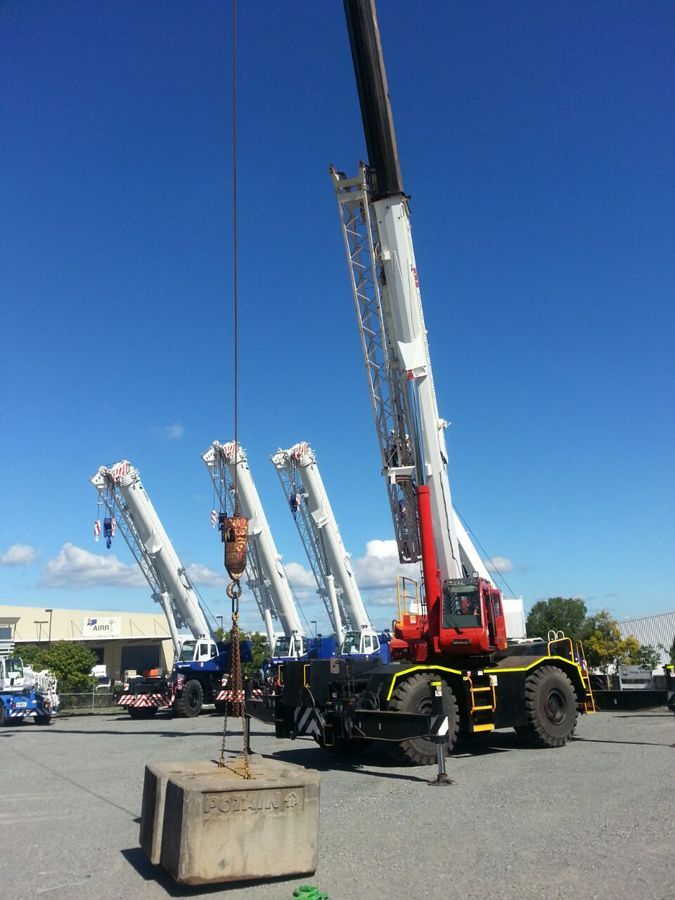

Tadano GR700EX
Browse All Tadano or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 37.73 ft in (11.5 m) |
| Max Height @ Max Raise Angle - No Jib | 144.36 ft in (44 m) |
| Max Elevating Angle | 80 degrees |
| Max Lift Capacity | 154323.58 lb (70000 kg) |
| Swing Speed | 2.3 rpm |
| Number Of Sections | 5 |
Dimensions
| Transport Length | 46.18 ft in (14075 mm) |
| Transport Width | 10.88 ft in (3315 mm) |
| Transport Height | 12.47 ft in (3800 mm) |
| Wheelbase | 155.52 in (3950 mm) |
| Width W/ Outriggers Extended | 23.63 ft in (7200 mm) |
| Carrier/Base Length | 26886.49 ft in (8195 m) |
| Upper Structure Tail Swing Radius | 13.52 ft in (4120 mm) |
Engine
| Engine Make | MITSUBISHI |
| Engine Model | 6M60-TLU3B |
| Gross Power | 268.3 hp (200 kw) |
| Power Measured @ | 2600 rpm |
| Max Torque | 579 lb ft (785 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 460.5 cu in (7.6 L) |
| Aspiration | Turbo charged |
Operational
| Operating Weight | 106516.4 lb (48315 kg) |
| Fuel Capacity | 79.3 gal (300 L) |
| Tire Size | 29.5 - 25 |
Transmission
| Transmission Type | Electronically controlled full automatic transmission |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 24.3 mph (39 km/h) |
