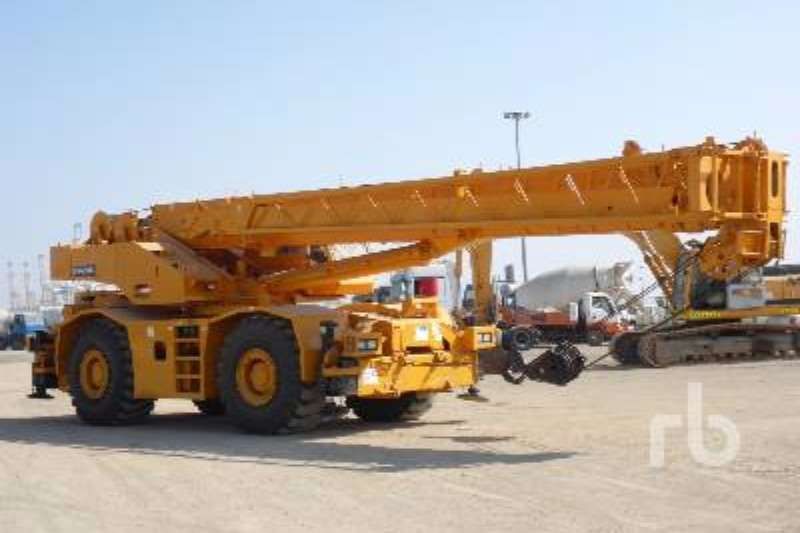

Tadano TR650XL-3
Browse All Tadano or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 37.71 ft in (11.5 m) |
| Max Height @ Max Raise Angle - No Jib | 144.4 ft in (44.02 m) |
| Min Operating Radius | 10 ft in (3.05 m) |
| Max Elevating Angle | 80.7 degrees |
| Max Operating Radius | 120 ft in (36.58 m) |
| Swing Speed | 2.3 rpm |
| Max Lift Capacity | 160000 lb (72574.79 kg) |
| Number Of Sections | 5 |
Dimensions
| Transport Length | 46.69 ft in (14230 mm) |
| Transport Width | 10.88 ft in (3315 mm) |
| Transport Height | 12.47 ft in (3800 mm) |
| Wheelbase | 12.96 in (3950 mm) |
| Width W/ Outriggers Extended | 23.63 ft in (7200 mm) |
| Carrier/Base Length | 27.48 ft in (8375 m) |
| Upper Structure Tail Swing Radius | 13.52 ft in (4120 mm) |
Engine
| Engine Make | 2251 |
| Engine Model | 6D16-TLEE |
| Gross Power | 223 hp (166.3 kw) |
| Power Measured @ | 2700 rpm |
| Max Torque | 521 lb ft (706.4 Nm) |
| Torque Measured @ | 1300 rpm |
| Displacement | 460 cu in (7.6 L) |
| Aspiration | turbocharged + aftercooled |
Operational
| Operating Weight | 105934 lb (48050.9 kg) |
| Fuel Capacity | 79.3 gal (300 L) |
| Hydraulic System Fluid Capacity | 195.5 gal (740 L) |
| Engine Oil Capacity | 4.3 gal (16 L) |
| Cooling System Fluid Capacity | 3.5 gal (13 L) |
| Operating Voltage | 24 V |
| Tire Size | 29.5-25 22PR |
Transmission
| Transmission Type | Electronically controlled full automatic transmission |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 24.9 mph (40 km/h) |
