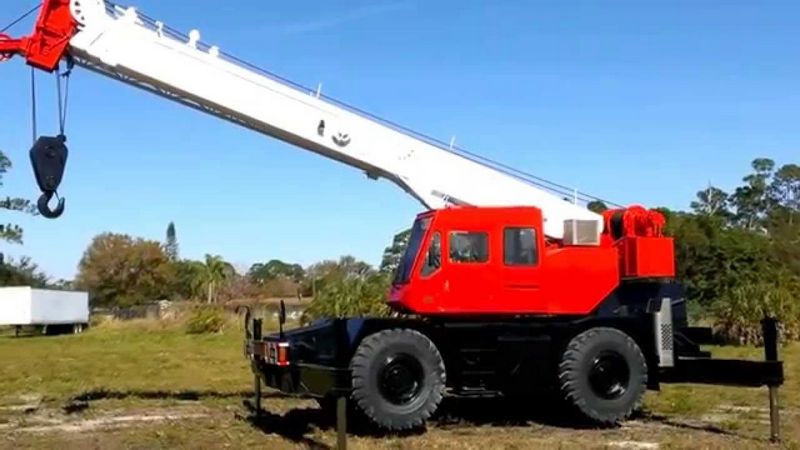

Tadano TR350XL
Browse All Tadano or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 29.86 ft in (9.1 m) |
| Max Height @ Max Raise Angle - No Jib | 93.84 ft in (28.6 m) |
| Max Elevating Angle | 80 degrees |
| Number Of Sections | 4 |
| Swing Speed | 3.4 rpm |
Dimensions
| Transport Length | 36.09 ft in (11000 mm) |
| Transport Width | 8.99 ft in (2740 mm) |
| Transport Height | 11.59 ft in (3530 mm) |
| Wheelbase | 136.23 in (3460 mm) |
| Width W/ Outriggers Extended | 21.99 ft in (6700 mm) |
| Carrier/Base Length | 24114.18 ft in (7350 m) |
| Upper Structure Tail Swing Radius | 10.83 ft in (3300 mm) |
Engine
| Fuel Filter | Full flow with replaceable element |
| Radiator Core Type | Fin and tube core, thermostat controlled |
| Number Of Cylinders | 6 |
| Engine Make | Mitsubishi |
| Engine Model | 6D16T |
| Cooling System | Liquid pressurized, recirculating bypass |
| Air Cleaner | Dry type, replaceable element |
| Net Power | 211.9 hp (158 kw) |
| Power Measured @ | 2800 rpm |
| Max Torque | 470 lb ft (637.3 Nm) |
| Torque Measured @ | 1600 rpm |
| Displacement | 460.5 cu in (7.6 L) |
| Bore | 4.7 in (118 mm) |
| Stroke | 4.6 in (115 mm) |
| Oil Filter | Full flow with replaceable element |
| Aspiration | Direct injection diesel |
Operational
| Operating Weight | 59965.8 lb (27200 kg) |
| Fuel Capacity | 79.3 gal (300 L) |
| Hydraulic System Fluid Capacity | 120.5 gal (456 L) |
| Cooling System Fluid Capacity | 3.5 gal (13 L) |
| Operating Voltage | 24 V |
| Tire Size | 20.5-25 24PR |
Transmission
| Transmission Type | Electronically controlled full automatic transmission |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 31.2 mph (50.3 km/h) |
