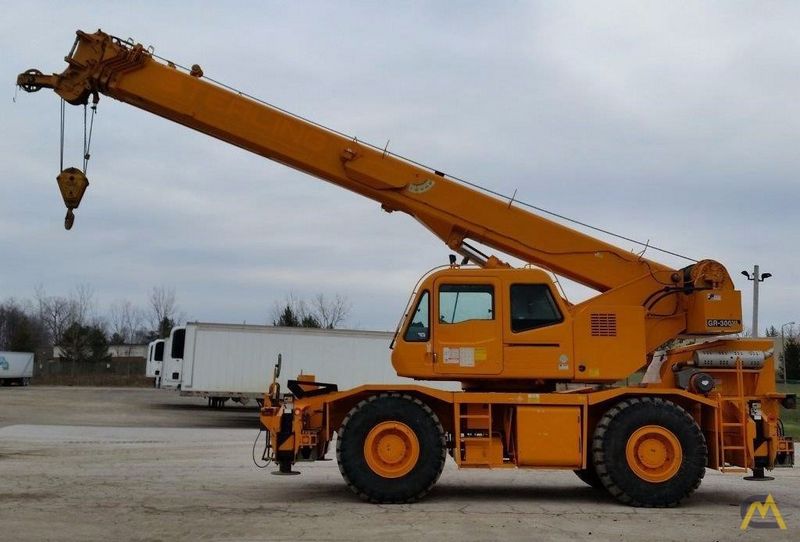

Tadano GR300XL
Browse All Tadano or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 31.83 ft in (9.7 m) |
| Max Height @ Max Raise Angle - No Jib | 101.71 ft in (31 m) |
| Max Elevating Angle | 81 degrees |
| Number Of Sections | 4 |
| Swing Speed | 2.7 rpm |
Dimensions
| Transport Length | 36.9 ft in (11245 mm) |
| Transport Width | 8.91 ft in (2715 mm) |
| Transport Height | 11.6 ft in (3535 mm) |
| Wheelbase | 11.49 in (3500 mm) |
| Width W/ Outriggers Extended | 20.67 ft in (6300 mm) |
| Carrier/Base Length | 24.02 ft in (7320 m) |
| Upper Structure Tail Swing Radius | 10.93 ft in (3330 mm) |
Engine
| Fuel Filter | Full flow with replaceable element |
| Radiator Core Type | Fin and tube core, thermostat controlled |
| Engine Make | Cummins |
| Engine Model | QSB6.7 |
| Gross Power | 215 hp (160.4 kw) |
| Cooling System | Liquid pressurized, recirculating by-pass |
| Air Cleaner | Dry type, replaceable element |
| Power Measured @ | 2500 rpm |
| Max Torque | 630 lb ft (854.2 Nm) |
| Torque Measured @ | 1600 rpm |
| Displacement | 408.9 cu in (6.7 L) |
| Bore | 4.3 in (107 mm) |
| Stroke | 4.9 in (124 mm) |
| Oil Filter | Full flow with replaceable element |
| Aspiration | Turbocharged |
Operational
| Fuel Capacity | 79.3 gal (300 L) |
| Hydraulic System Fluid Capacity | 100.4 gal (380 L) |
| Operating Voltage | 24 V |
| Tire Size | 20.5-25 24PR |
Transmission
| Transmission Type | Full powershift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 29.3 mph (47 km/h) |
