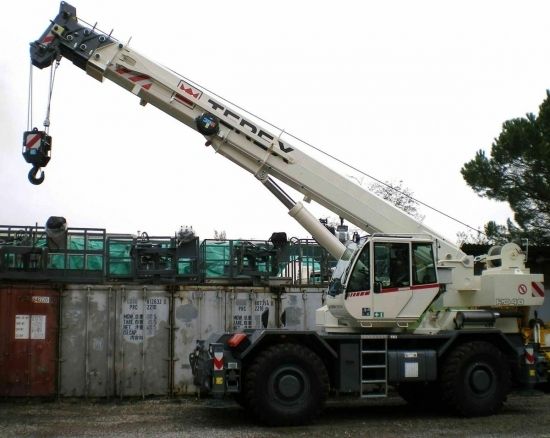

Terex RC40
Browse All Terex or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 29.86 ft in (9.1 m) |
| Max Height @ Max Raise Angle - No Jib | 89.9 ft in (27.4 m) |
| Min Operating Radius | 9.85 ft in (3 m) |
| Max Elevating Angle | 78 degrees |
| Max Operating Radius | 82.03 ft in (25 m) |
| Max Lift Capacity | 92594.15 lb (42000 kg) |
| Number Of Sections | 5 |
Dimensions
| Transport Length | 35.88 ft in (10935 mm) |
| Transport Width | 8.37 ft in (2550 mm) |
| Transport Height | 11.13 ft in (3390 mm) |
| Wheelbase | 11.88 in (3620 mm) |
| Ground Clearance | 1.19 ft in (360 mm) |
| Width W/ Outriggers Extended | 19.13 ft in (5830 mm) |
| Carrier/Base Length | 21.92 ft in (6680 m) |
| Upper Structure Tail Swing Radius | 11.91 ft in (3630 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | QSB6.7 |
| Gross Power | 159.6 hp (119 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 539.9 lb ft (732 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 408.9 cu in (6.7 L) |
| Aspiration | Turbo supercharged |
Operational
| Operating Weight | 606271.2 lb (275000 kg) |
| Fuel Capacity | 79.3 gal (300 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Tire Size | 16R25 |
Transmission
| Transmission Type | DANA series 20000: powershift with torque converter |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 6 |
| Max Speed - Forward | 21.2 mph (34 km/h) |
