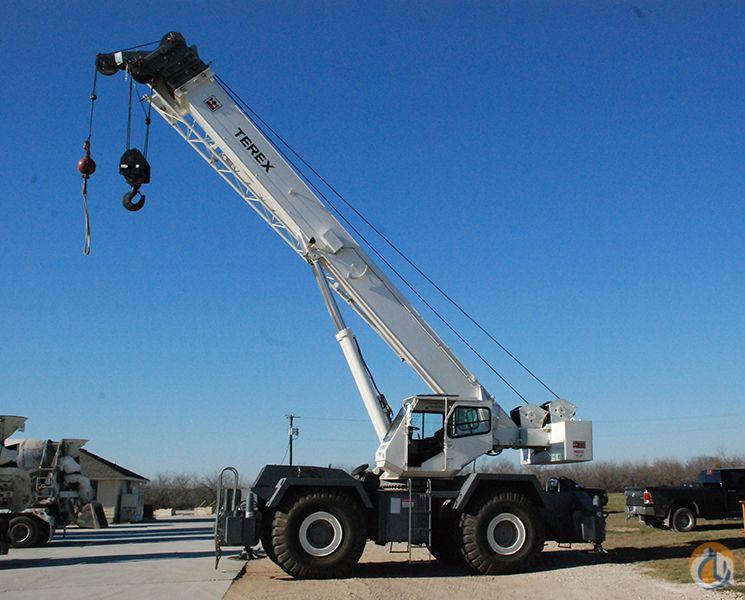

Terex RT160
Browse All Terex or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 34 ft in (10.37 m) |
| Max Height @ Max Raise Angle - No Jib | 115 ft in (35.06 m) |
| Max Elevating Angle | 78 degrees |
| Swing Speed | 2 rpm |
| Max Lift Capacity | 12000 lb (5443.11 kg) |
| Number Of Sections | 4 |
Dimensions
| Transport Length | 45.17 ft in (13766 mm) |
| Transport Width | 9.68 ft in (2950 mm) |
| Transport Height | 12.18 ft in (3710 mm) |
| Wheelbase | 12.24 in (3730 mm) |
| Ground Clearance | 1.58 ft in (480 mm) |
| Width W/ Outriggers Extended | 23.63 ft in (7200 mm) |
| Carrier/Base Length | 26.59 ft in (8102 m) |
Engine
| Engine Make | 2347 |
| Engine Model | 6CT8.3L |
| Gross Power | 215 hp (160.4 kw) |
| Power Measured @ | 2500 rpm |
| Max Torque | 558 lb ft (756.6 Nm) |
| Displacement | 504.5 cu in (8.3 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 90463 lb (41033.4 kg) |
| Fuel Capacity | 80 gal (302.9 L) |
| Hydraulic System Fluid Capacity | 162 gal (613.3 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Tire Size | 29.5 x 25-28 P.R. |
Transmission
| Transmission Type | Power-Shift Transmission |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 3 |
