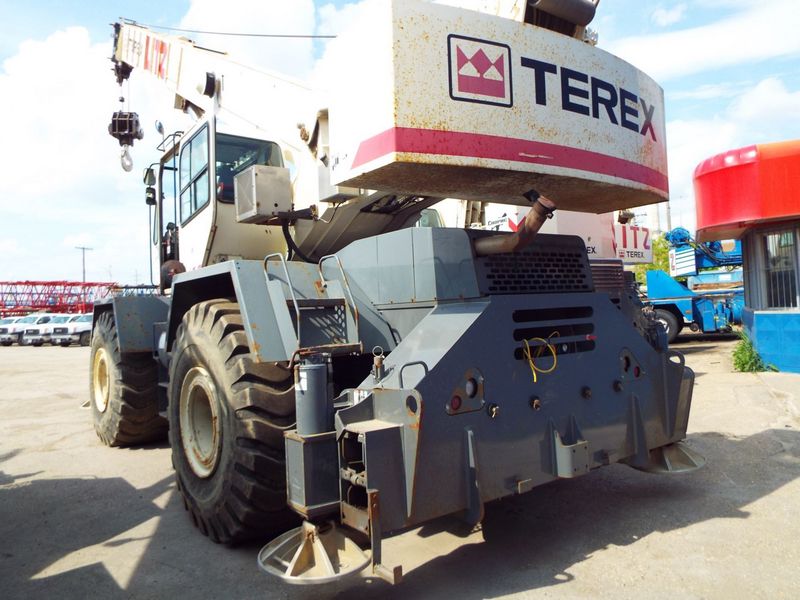

Terex RT700
Browse All Terex or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 40 ft in (12.2 m) |
| Max Height @ Max Raise Angle - No Jib | 126 ft in (38.41 m) |
| Max Elevating Angle | 78 degrees |
| Swing Speed | 2.21 rpm |
| Number Of Sections | 4 |
Dimensions
| Transport Length | 48.61 ft in (14814 mm) |
| Transport Width | 9.84 ft in (2997 mm) |
| Transport Height | 13.07 ft in (3983 mm) |
| Wheelbase | 13.13 in (4002 mm) |
| Ground Clearance | 1.97 ft in (600 mm) |
| Width W/ Outriggers Extended | 26 ft in (7924 mm) |
| Carrier/Base Length | 27.1 ft in (8258 m) |
Engine
| Engine Make | 2347 |
| Engine Model | QSB5.9 |
| Gross Power | 275 hp (205.1 kw) |
| Net Power | 275 hp (205.1 kw) |
| Power Measured @ | 2500 rpm |
| Max Torque | 750 lb ft (1016.9 Nm) |
| Torque Measured @ | 1500 rpm |
| Displacement | 359 cu in (5.9 L) |
| Aspiration | Turbocharged & charge air cooled |
Operational
| Operating Weight | 91216 lb (41374.9 kg) |
| Fuel Capacity | 80 gal (302.9 L) |
| Hydraulic System Fluid Capacity | 178 gal (673.9 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 102 amps |
| Tire Size | 29.50 x 25, 28 P.R. |
Transmission
| Transmission Type | Power-Shift Transmission |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 6 |
| Max Speed - Forward | 25 mph (40.3 km/h) |
