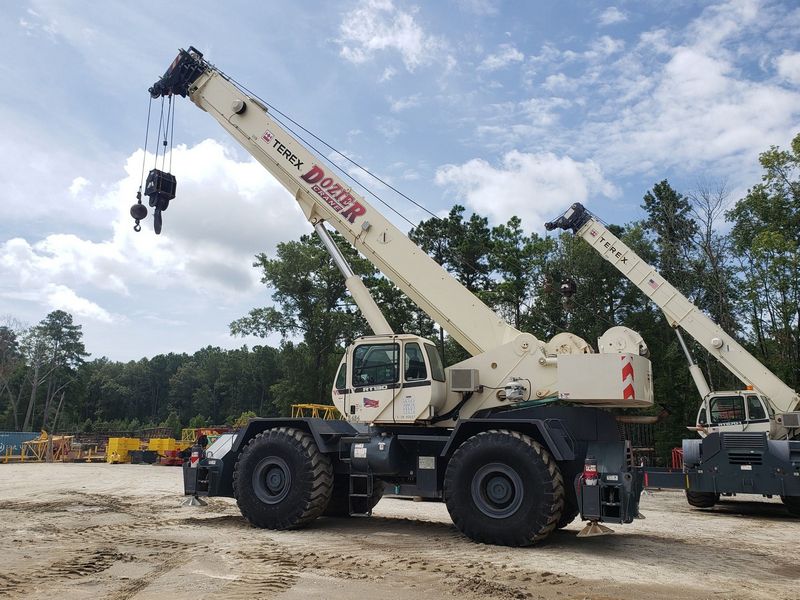

Terex RT130
Browse All Terex or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 41.5 ft in (12.65 m) |
| Max Height @ Max Raise Angle - No Jib | 155 ft in (47.25 m) |
| Max Elevating Angle | 80 degrees |
| Number Of Sections | 5 |
Dimensions
| Transport Length | 49.8 ft in (15179.04 mm) |
| Transport Width | 11.1 ft in (3383.28 mm) |
| Transport Height | 13 ft in (3962.4 mm) |
| Wheelbase | 179.94 in (4570.48 mm) |
| Width W/ Outriggers Extended | 26 ft in (7924.8 mm) |
| Carrier/Base Length | 29.2 ft in (8.91 m) |
| Upper Structure Tail Swing Radius | 15.11 ft in (4605.53 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | Cummins |
| Engine Model | QSC-300 |
| Gross Power | 300 hp (223.8 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 1000 lb ft (1355.9 Nm) |
| Torque Measured @ | 1400 rpm |
Operational
| Fuel Capacity | 80 gal (302.9 L) |
| Hydraulic System Fluid Capacity | 304 gal (1150.8 L) |
| Operating Voltage | 24 V |
| Tire Size | 33.25x29-32 PR |
Transmission
| Number Of Forward Gears | 6 |
| Max Speed - Forward | 12.7 mph (20.4 km/h) |
