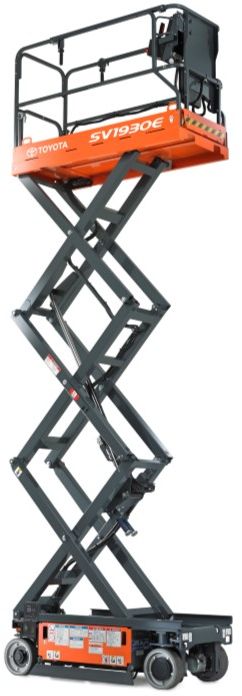

Toyota SV1930E
Browse All Toyota or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 73.63 in (1870 mm) |
| Wheelbase | 4.96 ft in (1510 mm) |
| Overall Width | 2.5 ft in (760 mm) |
| Ground Clearance | 5.12 in (130 mm) |
| Gradeability | 25 % |
| Ground Pressure | 109 psi (751.53 kPa) |
| Overall Height | 6.63 ft in (2020.83 mm) |
| Turning Radius - Outside | 6.14 ft in (1870 mm) |
Platform
| Max Platform Height | 18.71 ft in (5700 mm) |
| Overall Height (Stowed, Guardrail Folded) | 5.6 ft in (1.71 m) |
| Overall Length (Stowed , Guardrail Folded) | 6.91 ft in (2.11 m) |
| Lower Time | 30 sec |
| Platform Capacity - Extension | 250 lb (113.4 kg) |
| Platform Extension Length | 35.4 in (899.16 mm) |
| Platform Height - Elevated | 19 ft in (5.8 m) |
| Platform Height - Lowered | 34.6 ft in (10.55 m) |
| Platform Inner Length | 66.93 in (1700 mm) |
| Platform Inner Width | 26.78 in (680 mm) |
| Platform Railing Height | 43.7 ft in (13.32 m) |
| Scissor Link Stages | 3 |
| Max Platform Weight Capacity | 500 lb (226.8 kg) |
| Lift Time | 26 sec |
| Max Working Height | 25 ft in (7620 mm) |
Engine
| System Voltage | 24 V |
Operational
| Tire Fill/Type | Solid |
Performance
| Drive System | Brushless Dual AC Motors |
| Travel Speed (Maximum) | 0.5 mph (0.9 km/h) |
| Travel Speed (Minimum) | 3 mph (4.9 km/h) |
