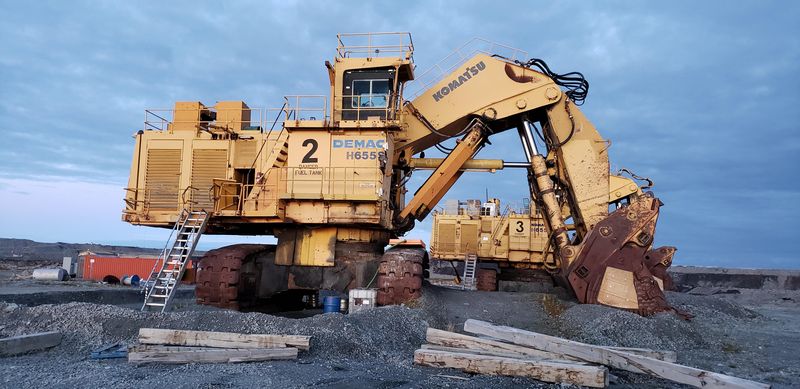

Komatsu H655S
Contents:
Dimensions
| Width Over Tracks | 25.6 ft in (7800 mm) |
| Length Of Track On Ground | 26.25 ft in (8000 mm) |
| Height To Top Of Cab | 31.53 ft in (9610 mm) |
| Tail Swing Radius | 26.76 ft in (8155 mm) |
| Ground Clearance | 45.04 in (1144 mm) |
| Upper Structure Ground Clearance | 11.59 ft in (3530 mm) |
| Length Of Tracks | 34.45 ft in (10500 mm) |
Loading Shovel
| Max Dig Reach | 55.12 ft in (16800 mm) |
| Max Dump Height | 45.94 ft in (14000 mm) |
| Max Cutting Height | 67.26 ft in (20500 mm) |
| Max Dig Depth | 8.86 ft in (2700 mm) |
| Height To Top Of Boom - Shovel | 34.45 ft in (10500 mm) |
| Overall Length - Shovel | 58.4 ft in (17800 mm) |
Undercarriage
| Loading Shovel Shoe Width | 59.06 in (1500 mm) |
| Track Gauge | 20.67 ft in (6300 mm) |
| Max Travel Speed | 1.3 mph (2.1 km/h) |
| Loading Shovel Operating Weight | 1510166.4 lb (685000 kg) |
| Loading Shovel Ground Pressure | 35.4 psi (244.08 kPa) |
Engine
| Number Of Cylinders | 16 |
| Engine Make | 2236 |
| Engine Model | 3516DE-TA x2 |
| Net Power | 3714 hp (2769.6 kw) |
| Power Measured @ | 1800 rpm |
| Aspiration | Turbocharged |
| Displacement | 4211 cu in (69.1 L) |
Operational
| Fuel Capacity | 2905.9 gal (11000 L) |
| Hydraulic System Fluid Capacity | 2205.9 gal (8350 L) |
| Swing Speed | 3.5 rpm |
Buckets
| Reference Bucket Capacity | 43.2 yd3 (33 m3) |
