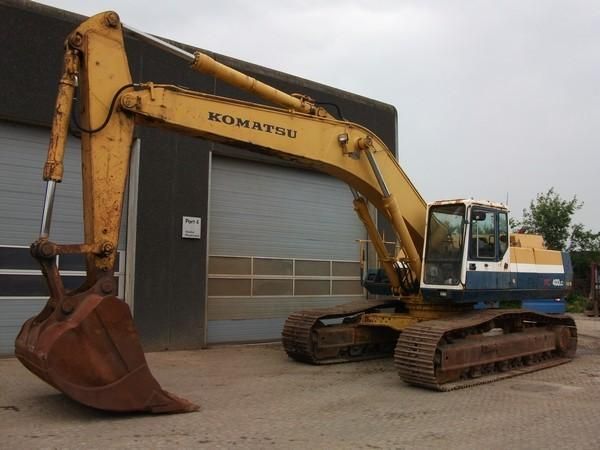

Komatsu PC400-1
Contents:
Backhoe Boom / Stick 1
| Max Dig Depth | 24.78 ft in (7550 mm) |
| Max Vertical Wall Dig Depth | 21.54 ft in (6565 mm) |
| Max Cutting Height | 35.44 ft in (10800 mm) |
| Max Dump Height | 24.64 ft in (7510 mm) |
| Max Reach On Ground | 37.9 ft in (11550 mm) |
| Arm Crowd Force | 35270 lb ft (156.5 Nm) |
| Backhoe Boom / Stick | Stick 10'3" (3130mm) |
Backhoe Boom / Stick 2
| Max Cutting Height | 37.31 ft in (11370 mm) |
| Max Dump Height | 26.3 ft in (8015 mm) |
| Max Vertical Wall Dig Depth | 26.65 ft in (8120 mm) |
| Max Dig Depth | 29.47 ft in (8980 mm) |
| Max Reach On Ground | 42.25 ft in (12875 mm) |
| Arm Crowd Force | 27117 lb ft (120.7 Nm) |
| Backhoe Boom / Stick | Stick 15'0" (4570mm) |
Dimensions
| Width Over Tracks | _ - (3480 mm) |
| Length Of Track On Ground | 12.39 ft in (3775 mm) |
| Height To Top Of Cab | 10.75 ft in (3275 mm) |
| Ground Clearance | 1.86 in (565 mm) |
| Upper Structure Ground Clearance | 4.25 ft in (1295 mm) |
Loading Shovel
| Max Dig Reach | 28.65 ft in (8730 mm) |
| Max Dump Height | 23 ft in (7010 mm) |
| Max Cutting Height | 32.29 ft in (9840 mm) |
| Max Dig Depth | 13.88 ft in (4230 mm) |
| Arm Crowd Force | 65035 lb ft (288 Nm) |
Undercarriage
| Loading Shovel Shoe Width | 24.02 in (610 mm) |
| Loading Shovel Operating Weight | 94798.78 lb (43000 kg) |
| Loading Shovel Ground Pressure | 12.09 psi (83.36 kPa) |
| Backhoe Shoe Width 2 | 29.93 in (760 mm) |
| Max Travel Speed | 1.99 mph (3.2 km/h) |
| Backhoe Shoe Width 1 | 24.02 in (610 mm) |
| Backhoe Operating Weight - Shoe 1 | 88184.91 lb (40000 kg) |
| Backhoe Ground Pressure - Shoe 2 | 9.24 psi (63.71 kPa) |
| Backhoe Ground Pressure - Shoe 1 | 11.38 psi (78.47 kPa) |
Engine
| Engine Make | 2238 |
| Engine Model | Cummins NT855C |
| Gross Power | 263 hp (196.2 kw) |
| Displacement | 855 cu in (14.1 L) |
| Aspiration | turbocharged |
Operational
| Fuel Capacity | 118.9 gal (450 L) |
| Hydraulic System Fluid Capacity | 79.3 gal (300 L) |
| Swing Speed | 7 rpm |
