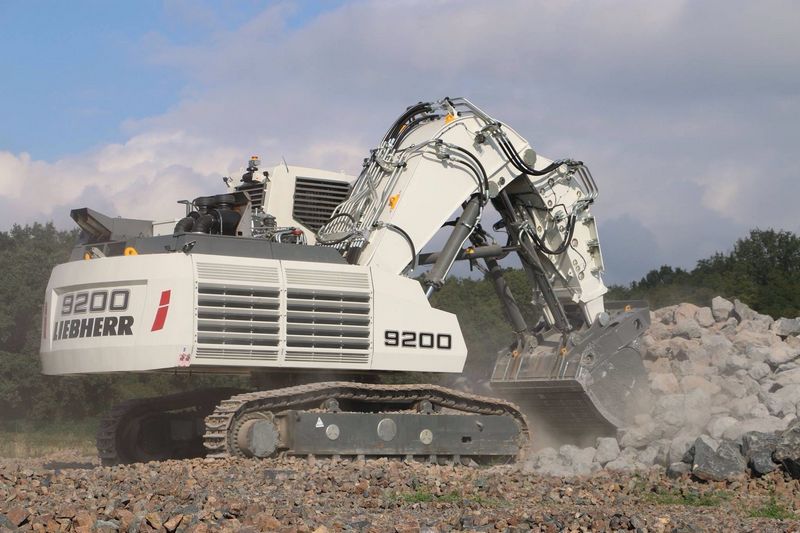

Liebherr R9200
Contents:
Boom/Stick Option (Hex) 1
| Max Digging Depth | 27.2 ft in (8290 mm) |
| Stick Length | 12.47 ft in (3.8 m) |
| Breakout Force - Iso | 166358.61 lb (740 kN) |
| Boom/Stick Option (Hex) 1 | Boom - 8.50 m/27 ft 9 in |
| Max. Teeth Height | 552.37 ft in (14030 mm) |
| Ground Pressure | 28.16 psi (194.16 kPa) |
| Max.Dumping Height | 31.86 ft in (9710 mm) |
| Bucket Digging Force - Iso | 146125.81 lb (650 kN) |
| Maximum Reach At Ground Level | 48.63 ft in (14820 mm) |
Boom/Stick Option (Hex) 3
| Max. Crowd Length | 13.72 ft in (4.18 m) |
| Boom/Stick Option (Hex) 3 | Boom - 6.00 m/19 ft 7 in |
| Breakout Force-Iso | 168606.7 lb (750 kN) |
| Ground Pressure | 28.73 psi (198.09 kPa) |
| Max Bucket Opening Width | 0.01 ft in (2.17 mm) |
| Max. Crowd Force | 207723.45 lb (924 kN) |
| Max. Crowd Force At Ground Level (Iso 6015) | 195134.15 lb (868 kN) |
| Max.Dumping Height | 27.47 ft in (8370 mm) |
| Maximum Reach At Ground Level | 41.34 ft in (12600 mm) |
| Stick Length | 14.34 ft in (4.37 m) |
Dimensions
| Ground Clearance | 32.76 in (832 mm) |
| Overall Length - Bucket Level On Ground | 660.44 in (16775 mm) |
| Overall Width | 5922 mm |
| Wheelbase | 18.06 ft in (5502 mm) |
| Track Width | 185.04 in (4.7 m) |
| Overall Height With Rops | 6930 mm |
Swing System
| Swing Gear | 2 Liebherr planetary reduction gears |
| Hydraulic Motors And Drives | 2 Liebherr axial piston motors |
| Swing Ring Teeth | Liebherr, sealed triple roller swing ring, internal teeth |
| Swing Speed | 5 rpm |
Engine
| Cooling Method | Integrated air-to-air heat exchanger |
| Rated Engine Speed | 1800 rpm |
| Engine Model | Cummins QSK38 |
| Engine Type | 12 cylinder V-engine |
| Rated Power | 1086.3 hp (810 kw) |
| Aspiration | turbocharged after cooled |
| Displacement | 2306.7 cu in (37.8 L) |
| Bore | 6.3 in (159 mm) |
| Stroke | 6.3 in (159 mm) |
| Alternator | 260 amps |
Capacities
| Fuel Tank | 1188.8 gal (4500 L) |
| Hydraulic Tank | 475.6 gal (1800 L) |
| Hydraulic System | 898.2 gal (3400 L) |
Operational
| Standard Bucket Capacity – Sae | 16.4 yd3 (12.5 m3) |
| Shovel Capacity | 16.4 yd3 (12.5 m3) |
| Operating Weight - 6wd | 450001 lb (204117 kg) |
Electrical
| Voltage | 24 V |
| Batteries | 4 x 180 Ah / 12 V |
Hydraulic System
| Maximum System Pressure | 5076 psi (34997.8 kPa) |
| Pump Flow | 270.6 gal/min (1024 L/min) |
