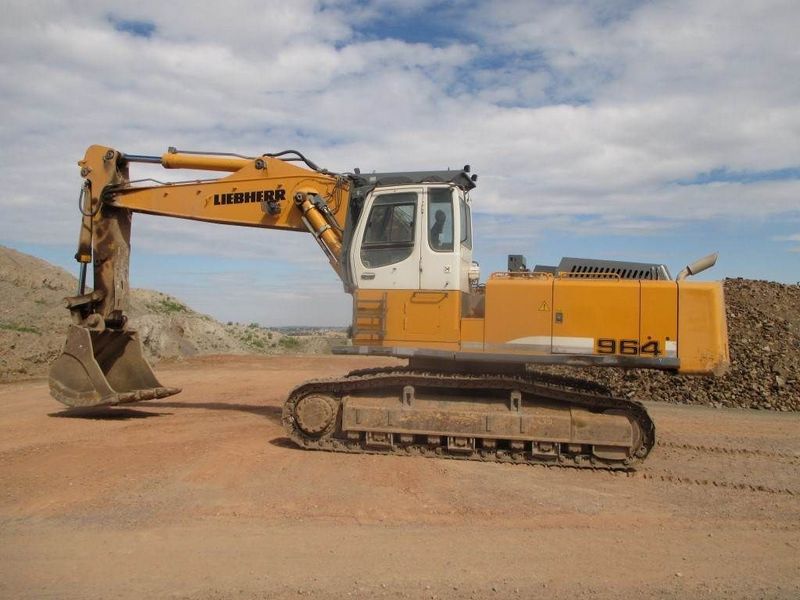

Liebherr R964C
Contents:
Backhoe Boom / Stick 1
| Max Dig Depth | 23.79 ft in (7250 mm) |
| Max Cutting Height | 37.9 ft in (11550 mm) |
| Max Dump Height | 25.43 ft in (7750 mm) |
| Max Reach On Ground | 37.9 ft in (11550 mm) |
| Backhoe Boom / Stick | 7m boom / 2.6m stick |
Backhoe Boom / Stick 2
| Max Cutting Height | 39.21 ft in (11950 mm) |
| Max Dump Height | 26.74 ft in (8150 mm) |
| Max Dig Depth | 26.42 ft in (8050 mm) |
| Max Reach On Ground | 40.36 ft in (12300 mm) |
| Backhoe Boom / Stick | 7m boom / 3.4m stick |
Backhoe Boom / Stick 3
| Max Cutting Height | 40.52 ft in (12350 mm) |
| Max Dump Height | 27.89 ft in (8500 mm) |
| Max Dig Depth | 29.04 ft in (8850 mm) |
| Max Reach On Ground | 42.98 ft in (13100 mm) |
| Backhoe Boom / Stick | 7m boom / 4.2m stick |
Backhoe Boom / Stick 4
| Max Cutting Height | 40.85 ft in (12450 mm) |
| Max Dump Height | 28.38 ft in (8650 mm) |
| Max Dig Depth | 27.24 ft in (8300 mm) |
| Backhoe Boom / Stick | 8.2m boom / 2.6m stick |
| Max Reach On Ground | 41.34 ft in (12600 mm) |
Dimensions
| Width Over Tracks | 13.52 ft in (4120 mm) |
| Length Of Track On Ground | 14.26 ft in (4345 mm) |
| Height To Top Of Cab | 11.95 ft in (3640 mm) |
| Ground Clearance | 1.99 in (605 mm) |
| Length Of Tracks | 17.92 ft in (5460 mm) |
| Upper Structure Ground Clearance | 4.73 ft in (1440 mm) |
| Height Of Tracks | 4.43 ft in (1350 mm) |
Loading Shovel
| Max Dig Reach | 28.84 ft in (8790 mm) |
| Max Dump Height | 23.79 ft in (7250 mm) |
| Max Cutting Height | 31.17 ft in (9500 mm) |
| Max Dig Depth | 9.85 ft in (3000 mm) |
| Arm Crowd Force | _ - (500 Nm) |
| Loading Shovel | Shovel Attachment |
Undercarriage
| Loading Shovel Shoe Width | 19.69 in (500 mm) |
| Backhoe Shoe Width 2 | 23.63 in (600 mm) |
| Max Travel Speed | 2.55 mph (4.1 km/h) |
| Number Of Lower Rollers | 8 |
| Number Of Upper Rollers | 2 |
| Backhoe Operating Weight - Shoe 3 | 149142.73 lb (67650 kg) |
| Backhoe Operating Weight - Shoe 1 | 144843.72 lb (65700 kg) |
| Backhoe Shoe Width 1 | 19.69 in (500 mm) |
| Loading Shovel Operating Weight | 167000.18 lb (75750 kg) |
| Backhoe Operating Weight - Shoe 2 | 146276.72 lb (66350 kg) |
| Backhoe Shoe Width 3 | 29.53 in (750 mm) |
Engine
| Number Of Cylinders | 8 |
| Engine Make | 2245 |
| Engine Model | D 9508 |
| Gross Power | 434 hp (320 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 986.2 cu in (16.2 L) |
| Aspiration | common rail injection turbo-charged inter-cooled reduced emissions |
Operational
| Fuel Capacity | 330.3 gal (1250 L) |
| Hydraulic System Fluid Capacity | 277.4 gal (1050 L) |
| Swing Speed | 5.8 rpm |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
