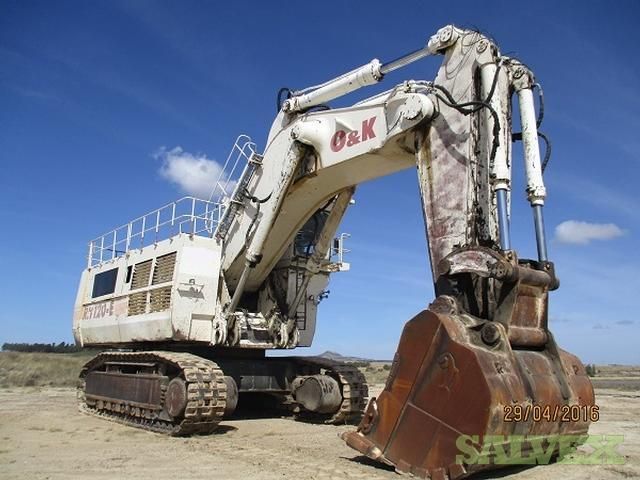

Terex RH120E
Contents:
Backhoe Boom / Stick 1
| Max Dig Depth | 20.02 ft in (6100 mm) |
| Max Cutting Height | 47.25 ft in (14400 mm) |
| Backhoe Boom / Stick | boom 27'11" (8500mm) w/ stick 13'9" (4000mm) |
Dimensions
| Width Over Tracks | 19.03 ft in (5800 mm) |
| Length Of Track On Ground | 19.69 ft in (6000 mm) |
| Height To Top Of Cab | 24.94 ft in (7600 mm) |
| Upper Structure Ground Clearance | 7.06 ft in (2150 mm) |
| Height Of Tracks | 6.37 ft in (1940 mm) |
| Length Of Tracks | 25.07 ft in (7640 mm) |
Loading Shovel
| Max Dig Reach | 44.95 ft in (13700 mm) |
| Max Dump Height | 35.11 ft in (10700 mm) |
| Max Cutting Height | 45.61 ft in (13900 mm) |
| Max Dig Depth | 8.21 ft in (2500 mm) |
| Loading Shovel | boom 20'4" (6200mm) w/ stick 14'5" (4400mm) |
Undercarriage
| Tail Swing Radius | 20.71 ft in (6310 mm) |
| Loading Shovel Shoe Width | 39.38 in (1000 mm) |
| Track Gauge | 15.75 ft in (4800 mm) |
| Max Travel Speed | 1.68 mph (2.71 km/h) |
| Backhoe Operating Weight - Shoe 1 | 632947.2 lb (287100 kg) |
| Number Of Track Shoes Per Side | 47 |
| Number Of Upper Rollers | 2 |
| Loading Shovel Ground Pressure | 30.9 psi (213.05 kPa) |
| Number Of Lower Rollers | 7 |
| Backhoe Shoe Width 1 | 39.38 in (1000 mm) |
| Backhoe Ground Pressure - Shoe 1 | 31.1 psi (214.43 kPa) |
| Loading Shovel Operating Weight | 626333.33 lb (284100 kg) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2236 |
| Engine Model | 2x C18 |
| Net Power | 1400 hp (1044 kw) |
| Gross Power | 1568 hp (1169.3 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 1105 cu in (18.2 L) |
| Aspiration | Turbocharged and charge air cooled |
Operational
| Fuel Capacity | 1416 gal (5360 L) |
| Hydraulic System Fluid Capacity | 660.5 gal (2500 L) |
| Swing Speed | 4.7 rpm |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 300 amps |
Buckets
| Reference Bucket Capacity | 20.2 yd3 (15.4 m3) |
| Minimum Bucket Capacity | 17.7 yd3 (13.5 m3) |
| Maximum Bucket Capacity | 22.3 yd3 (17 m3) |
