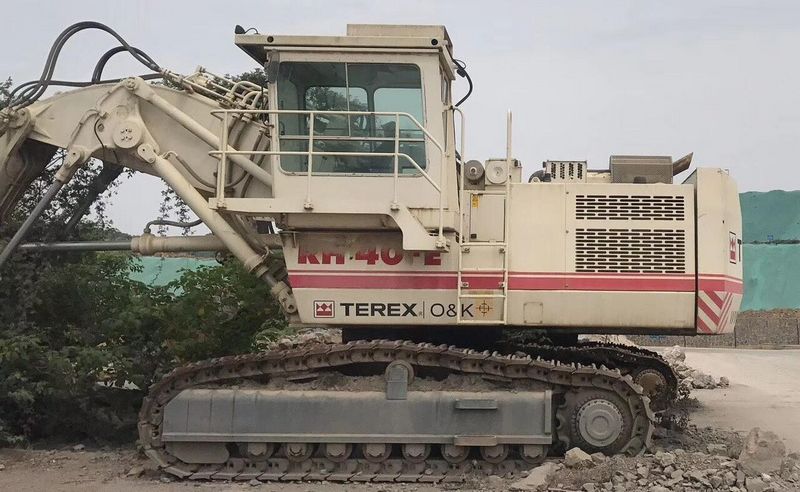

Terex RH40E
Contents:
Backhoe Boom / Stick 1
| Max Dig Depth | 19.69 ft in (6000 mm) |
| Max Cutting Height | 41.02 ft in (12500 mm) |
| Backhoe Boom / Stick | boom 23'11" (7300mm) w/ stick 9'2" (2800mm) |
Backhoe Boom / Stick 2
| Max Cutting Height | 42 ft in (12800 mm) |
| Max Dig Depth | 23.96 ft in (7300 mm) |
| Backhoe Boom / Stick | boom 23'11" (7300mm) w/ stick 10'10" (3300mm) |
Dimensions
| Width Over Tracks | 14.44 ft in (4400 mm) |
| Length Of Track On Ground | 15.39 ft in (4690 mm) |
| Height To Top Of Cab | 17.23 ft in (5250 mm) |
| Ground Clearance | 2.96 in (900 mm) |
| Length Of Tracks | 19.72 ft in (6010 mm) |
| Height Of Tracks | 5.19 ft in (1580 mm) |
| Upper Structure Ground Clearance | 5.65 ft in (1720 mm) |
Loading Shovel
| Max Dig Reach | 34.45 ft in (10500 mm) |
| Max Dump Height | 28.88 ft in (8800 mm) |
| Max Cutting Height | 35.77 ft in (10900 mm) |
| Max Dig Depth | 6.89 ft in (2100 mm) |
| Loading Shovel | boom 16'7" (5050mm) w/ stick 11'8" (3550mm) |
Undercarriage
| Loading Shovel Shoe Width | 23.63 in (600 mm) |
| Track Gauge | 12.47 ft in (3800 mm) |
| Number Of Upper Rollers | 1 |
| Backhoe Operating Weight - Shoe 3 | 230493.28 lb (104550 kg) |
| Backhoe Ground Pressure - Shoe 1 | 28.1 psi (193.75 kPa) |
| Backhoe Shoe Width 1 | 19.69 in (500 mm) |
| Backhoe Shoe Width 2 | 23.63 in (600 mm) |
| Backhoe Shoe Width 3 | 29.53 in (750 mm) |
| Loading Shovel Ground Pressure | 23.8 psi (164.1 kPa) |
| Loading Shovel Operating Weight | 228398.89 lb (103600 kg) |
| Backhoe Operating Weight - Shoe 2 | 227517.04 lb (103200 kg) |
| Backhoe Operating Weight - Shoe 1 | 224540.8 lb (101850 kg) |
| Backhoe Ground Pressure - Shoe 3 | 19.3 psi (133.07 kPa) |
| Backhoe Ground Pressure - Shoe 2 | 23.8 psi (164.1 kPa) |
| Max Travel Speed | 1.45 mph (2.34 km/h) |
| Number Of Lower Rollers | 8 |
| Number Of Track Shoes Per Side | 48 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSK 19 C (Tier 1) |
| Net Power | 607 hp (452.7 kw) |
| Gross Power | 640 hp (477.3 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 1159 cu in (19 L) |
| Aspiration | Turbocharged and aftercooled |
Operational
| Fuel Capacity | 343.5 gal (1300 L) |
| Hydraulic System Fluid Capacity | 343.5 gal (1300 L) |
| Swing Speed | 5.6 rpm |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 175 amps |
Buckets
| Reference Bucket Capacity | 7.9 yd3 (6 m3) |
| Minimum Bucket Capacity | 7.9 yd3 (6 m3) |
| Maximum Bucket Capacity | 9.2 yd3 (7 m3) |
