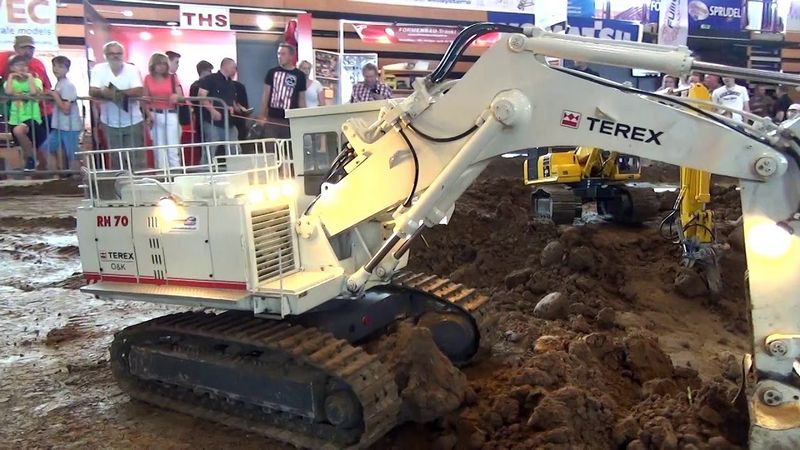

Terex RH70
Contents:
Backhoe Boom / Stick 1
| Max Dig Depth | 23.96 ft in (7300 mm) |
| Max Cutting Height | 40.69 ft in (12400 mm) |
| Backhoe Boom / Stick | boom 25'7" (7800mm) w/ stick 10'10'' (3300mm) |
Dimensions
| Width Over Tracks | 15.75 ft in (4800 mm) |
| Length Of Track On Ground | 17 ft in (5180 mm) |
| Height To Top Of Cab | 18.87 ft in (5750 mm) |
| Ground Clearance | 2.96 in (900 mm) |
| Length Of Tracks | 21.2 ft in (6460 mm) |
| Upper Structure Ground Clearance | 5.71 ft in (1740 mm) |
| Height Of Tracks | 5.19 ft in (1580 mm) |
Undercarriage
| Track Gauge | 13.78 ft in (4200 mm) |
| Backhoe Ground Pressure - Shoe 2 | 20.9 psi (144.11 kPa) |
| Max Travel Speed | 1.45 mph (2.34 km/h) |
| Number Of Lower Rollers | 9 |
| Number Of Track Shoes Per Side | 52 |
| Number Of Upper Rollers | 3 |
| Backhoe Operating Weight - Shoe 1 | 268963.98 lb (122000 kg) |
| Backhoe Ground Pressure - Shoe 1 | 25.7 psi (177.2 kPa) |
| Backhoe Operating Weight - Shoe 2 | 272711.81 lb (123700 kg) |
| Backhoe Operating Weight - Shoe 3 | 276459.66 lb (125400 kg) |
| Backhoe Shoe Width 1 | 23.63 in (600 mm) |
| Backhoe Shoe Width 2 | 29.53 in (750 mm) |
| Backhoe Shoe Width 3 | 35.44 in (900 mm) |
| Backhoe Ground Pressure - Shoe 3 | 17.5 psi (120.66 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2236 |
| Engine Model | C 18 |
| Net Power | 665 hp (369.9 kw) |
| Gross Power | 700 hp (389.3 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 1104.6 cu in (18.1 L) |
| Aspiration | Turbocharged and charge air cooled |
Operational
| Fuel Capacity | 435.9 gal (1650 L) |
| Hydraulic System Fluid Capacity | 396.3 gal (1500 L) |
| Swing Speed | 5.6 rpm |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 150 amps |
