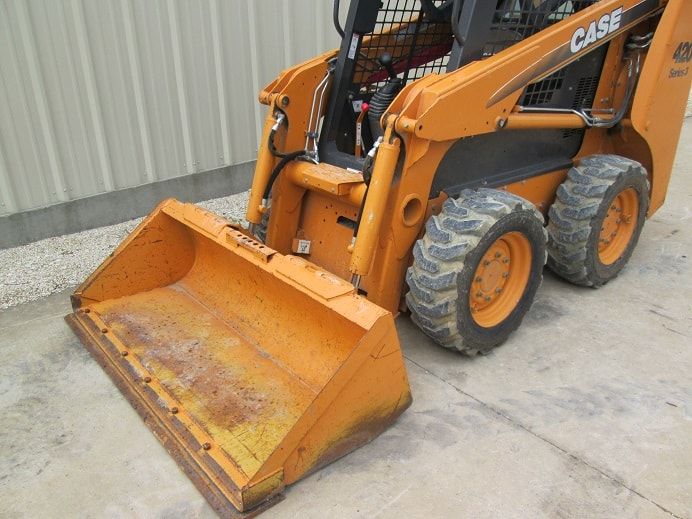

Case 420 Series III
Browse All Case or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 10.8 ft in (3290 mm) |
| Width Over Tires | 4.93 ft in (1500 mm) |
| Ground Clearance | 8.19 in (208 mm) |
| Height To Top Of Cab | 6.57 ft in (2000 mm) |
| Wheelbase | 3.52 ft in (1070 mm) |
| Length W/O Bucket | 8.54 ft in (2600 mm) |
| Clearance At Max Lift And Dump | 8.01 ft in (2440 mm) |
| Reach At Max Lift And Dump | 22.84 in (580 mm) |
| Turning Radius From Center - Machine Rear | 51.97 in (1320 mm) |
| Turning Radius From Center - Inc Bucket | 75.99 in (1930 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2239 |
| Engine Model | 432T/M3 diesel Tier III certified |
| Gross Power | 73.8 hp (55 kw) |
| Net Power | 69.8 hp (52 kw) |
| Power Measured @ | 2900 rpm |
| Aspiration | Turbocharged |
| Displacement | 195.3 cu in (3.2 L) |
Operational
| Operational Weight | 6605.1 lb (2996 kg) |
| Fuel Capacity | 22.1 gal (83.3 L) |
| Cooling System Fluid Capacity | 3.1 gal (11.4 L) |
| Engine Oil Fluid Capacity | 2.3 gal (8.5 L) |
| Max Speed | 7.3 mph (11.6 km/h) |
| Hydraulic System Fluid Capacity | 13.3 gal (50 L) |
| Chain Box Fluid Capacity - Each Side | 2.1 gal (7.6 L) |
| Operating Speed | 7.3 mph (11.6 km/h) |
| Tire Size | 10.00 x 16.5 8 ply |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
Loader
| Breakout Force | 4200 lb (1905.1 kg) |
| Operating Load Rating | 1849.7 lb (839 kg) |
| Tipping Angle | 3699.4 degrees |
| Bucket Capacity | 0.5 yd3 (0.4 m3) |
Hydraulic
| Pump Type | Gear |
| Pump Flow Capacity | 23.8 gal/min (90 L/min) |
| Relief Valve Pressure | 3050 psi (21029 kPa) |
