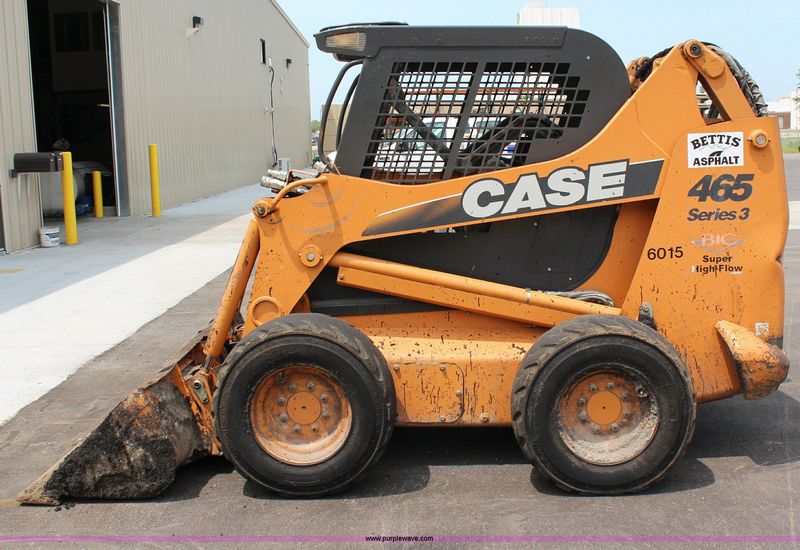

Case 465 Series III
Browse All Case or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 11.91 ft in (3630 mm) |
| Width Over Tires | 6.01 ft in (1830 mm) |
| Ground Clearance | 9.22 in (234 mm) |
| Height To Top Of Cab | 6.93 ft in (2110 mm) |
| Wheelbase | 4.3 ft in (1310 mm) |
| Length W/O Bucket | 9.36 ft in (2850 mm) |
| Clearance At Max Lift And Dump | 7.91 ft in (2410 mm) |
| Reach At Max Lift And Dump | 40.16 in (1020 mm) |
| Turning Radius From Center - Machine Rear | 56.3 in (1430 mm) |
| Turning Radius From Center - Inc Bucket | 86.23 in (2190 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2239 |
| Engine Model | 445T/M3 diesel Tier III certified |
| Gross Power | 89.9 hp (67 kw) |
| Net Power | 83.2 hp (62 kw) |
| Power Measured @ | 2300 rpm |
| Aspiration | Turbocharged |
| Displacement | 274.7 cu in (4.5 L) |
Operational
| Operational Weight | 8875.9 lb (4026 kg) |
| Fuel Capacity | 20.2 gal (76.4 L) |
| Cooling System Fluid Capacity | 3.1 gal (11.5 L) |
| Engine Oil Fluid Capacity | 3.2 gal (12 L) |
| Max Speed | 6.3 mph (10 km/h) |
| Hydraulic System Fluid Capacity | 17.1 gal (64.4 L) |
| Chain Box Fluid Capacity - Each Side | 2.1 gal (7.6 L) |
| Operating Speed | 6.3 mph (10 km/h) |
| Tire Size | 12.00 x 16.5 10 ply |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
Loader
| Breakout Force | 6500 lb (2948.4 kg) |
| Operating Load Rating | 3000.5 lb (1361 kg) |
| Tipping Angle | 6001 degrees |
| Bucket Capacity | 0.7 yd3 (0.5 m3) |
Hydraulic
| Pump Type | Gear |
| Pump Flow Capacity | 22 gal/min (83 L/min) |
| Relief Valve Pressure | 3050 psi (21029 kPa) |
