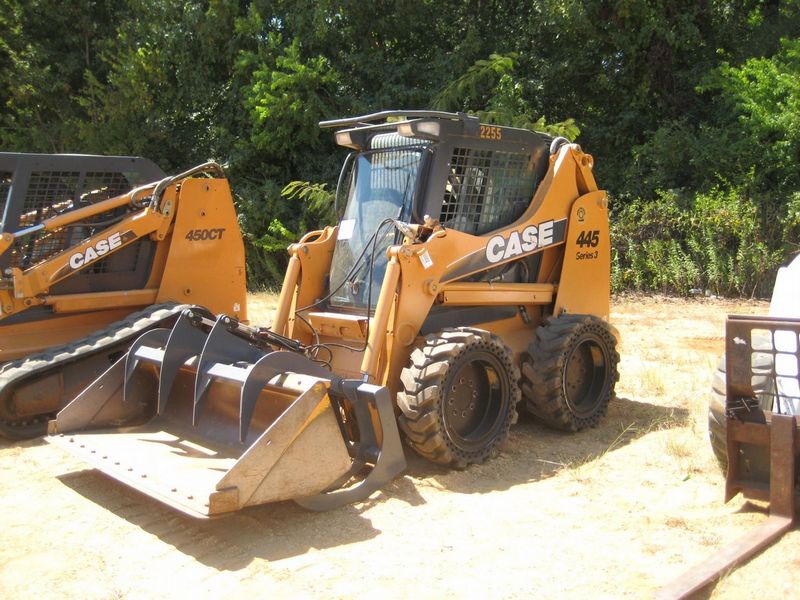

Case 445 Series III
Browse All Case or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 10.96 ft in (3340 mm) |
| Width Over Tires | 6.01 ft in (1830 mm) |
| Ground Clearance | 9.3 in (236 mm) |
| Height To Top Of Cab | 6.93 ft in (2110 mm) |
| Wheelbase | 3.75 ft in (1140 mm) |
| Length W/O Bucket | 8.7 ft in (2650 mm) |
| Clearance At Max Lift And Dump | 7.52 ft in (2290 mm) |
| Reach At Max Lift And Dump | 36.62 in (930 mm) |
| Turning Radius From Center - Machine Rear | 53.55 in (1360 mm) |
| Turning Radius From Center - Inc Bucket | 83.47 in (2120 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2239 |
| Engine Model | 432T/M3 diesel Tier III certified |
| Gross Power | 81.9 hp (61 kw) |
| Net Power | 76.5 hp (57 kw) |
| Power Measured @ | 2300 rpm |
| Aspiration | Turbocharged |
| Displacement | 195.3 cu in (3.2 L) |
Operational
| Operational Weight | 8119.7 lb (3683 kg) |
| Fuel Capacity | 17.4 gal (65.5 L) |
| Cooling System Fluid Capacity | 3.1 gal (11.4 L) |
| Engine Oil Fluid Capacity | 2.3 gal (8.5 L) |
| Max Speed | 7 mph (11.2 km/h) |
| Hydraulic System Fluid Capacity | 11 gal (41.6 L) |
| Chain Box Fluid Capacity - Each Side | 2.1 gal (7.6 L) |
| Operating Speed | 7 mph (11.2 km/h) |
| Tire Size | 12.00 x 16.5 10 ply |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
Loader
| Breakout Force | 5000 lb (2268 kg) |
| Operating Load Rating | 2500.1 lb (1134 kg) |
| Tipping Angle | 5000.1 degrees |
| Bucket Capacity | 0.6 yd3 (0.4 m3) |
Hydraulic
| Pump Type | Gear |
| Pump Flow Capacity | 23.9 gal/min (90.1 L/min) |
| Relief Valve Pressure | 3050 psi (21029 kPa) |
