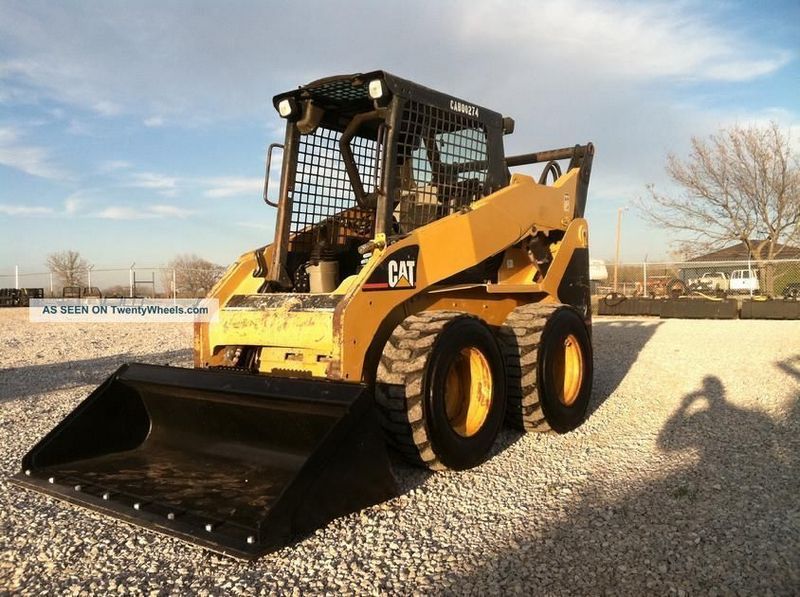

Caterpillar 232
Browse All Caterpillar or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 11.28 ft in (3437 mm) |
| Width Over Tires | 5.01 ft in (1525 mm) |
| Ground Clearance | 5.7 in (144.78 mm) |
| Height To Top Of Cab | 6.4 ft in (1950 mm) |
| Wheelbase | 3.59 ft in (1094 mm) |
| Length W/O Bucket | 9.06 ft in (2760 mm) |
| Clearance At Max Lift And Dump | 7.62 ft in (2320 mm) |
| Reach At Max Lift And Dump | 30.16 in (766 mm) |
| Wheel Base | 3.59 ft in (0.1 m) |
| Bucket Pin Height - Carry Position | 9.7 in (246.38 mm) |
| Clearance At Maximum Lift And Dump | 86.9 in (2207.27 mm) |
| Length - Without Bucket | 109.3 in (2776.22 mm) |
| Bucket Pin Height - Maximum Lift | 9.89 ft in (0.26 m) |
| Maximum Overall Height | 153.31 in (3893.82 mm) |
| Height - Top Of Cab | 6.41 ft in (0.17 m) |
| Bumper Overhang - Rear Axle | 38.9 in (988.06 mm) |
| Reach - Maximum Lift/Dump | 28.5 in (723.9 mm) |
| Turning Radius From Center - Inc Bucket | 88.71 in (2253 mm) |
| Length - With Bucket On Ground | 135.31 in (3436.62 mm) |
| Vehicle Width Over Tires | 60 in (1524 mm) |
Operating Specifications
| Breakout Force - Tilt Cylinder | 4056 lb (1839.78 kg) |
| Breakout Force - Lift Cylinder | 3814 lb (1730.01 kg) |
| Rated Operating Capacity | 1750 lb (793.79 kg) |
| Rated Operating Capacity With Optional Counterweight | 1795 lb (814.2 kg) |
| Tipping Load | 3500 lb (1587.58 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2236 |
| Engine Model | 3024C |
| Gross Power | 51 hp (38.1 kw) |
| Net Power | 48 hp (35.8 kw) |
| Power Measured @ | 3000 rpm |
| Displacement | 134 cu in (2.2 L) |
| Bore | 3.4 in (84.1 mm) |
| Stroke | 4 in (100.1 mm) |
| Engine Model | Cat 3034C |
| Net Flywheel Power | 48 hp (35.8 kw) |
Operational
| Operational Weight | 6931 lb (3143.9 kg) |
| Fuel Capacity | 17.2 gal (65 L) |
| Max Speed | 6.2 mph (9.9 km/h) |
| Hydraulic System Fluid Capacity | 14.6 gal (55 L) |
| Operating Speed | 6.2 mph (9.9 km/h) |
Loader
| Operating Load Rating | 1750 lb (793.8 kg) |
| Tipping Angle | 3633 degrees |
| Bucket Capacity | 0.6 yd3 (0.4 m3) |
Weights
| Operating Weight | 6739.5 lb (3057 kg) |
Hydraulic
| Pump Flow Capacity | 14.6 gal/min (55 L/min) |
Hydraulic System
| Loader Hydraulic Pressure | 3100 psi |
| Loader Hydraulic Flow | 14.7 gal/min |
Service Refill Capacities
| Cooling System | 2.4 gal (9.1 L) |
| Fuel Tank | 18.2 gal (68.9 L) |
| Hydraulic Tank | 9.2 gal (34.9 L) |
| Engine Crankcase | 2.1 gal (8 L) |
| Hydraulic System | 15.3 gal (58 L) |
| Chain Box - Each Side | 1.6 gal (6.1 L) |
Cab
| Rops | SAE J1040 MAY94 and ISO3471:1994 |
| Fops | SAEJ/ISO 3449 APR98 Level I and ISO3449:1992 Level I |
| Fops Level Ii | SAEJ/ISO 3449 APR 98 Level II and ISO 3449:1992 Level II (optional) |
