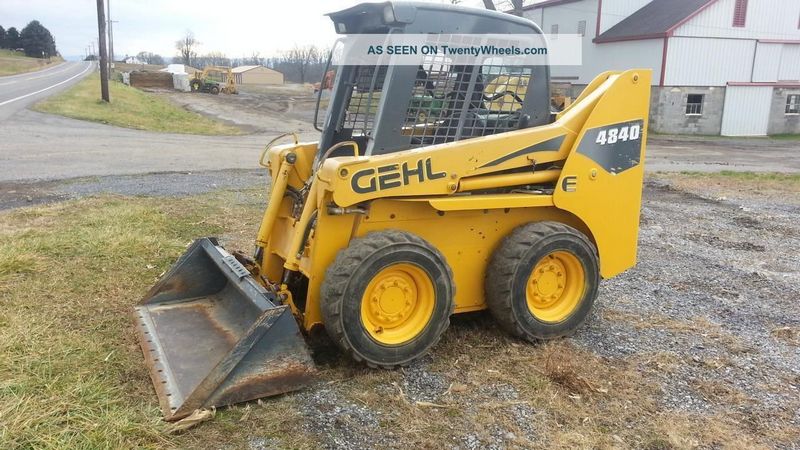

Gehl 4840
Browse All Gehl or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 10.53 ft in (3208 mm) |
| Width Over Tires | 5.3 ft in (1613 mm) |
| Ground Clearance | 7.52 in (191 mm) |
| Height To Top Of Cab | 6.5 ft in (1981 mm) |
| Wheelbase | 3.46 ft in (1054 mm) |
| Length W/O Bucket | 7.78 ft in (2370 mm) |
| Clearance At Max Lift And Dump | 7.46 ft in (2273 mm) |
| Reach At Max Lift And Dump | 27.6 in (701 mm) |
| Turning Radius From Center - Machine Rear | 30.75 in (781 mm) |
| Turning Radius From Center - Inc Bucket | 38 in (965 mm) |
Engine
| Engine Make | 2349 |
| Engine Model | F4M2011 |
| Net Power | 60 hp (44.8 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 190 cu in (3.2 L) |
Operational
| Operational Weight | 6480 lb (2939.3 kg) |
| Fuel Capacity | 14.8 gal (56 L) |
| Max Speed | 8.1 mph (13 km/h) |
| Hydraulic System Fluid Capacity | 11.9 gal (45 L) |
| Tire Size | 10.00x16.5 HD |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
Loader
| Operating Load Rating | 1700 lb (771.2 kg) |
| Tipping Angle | 3400 degrees |
Hydraulic
| Pump Flow Capacity | 19 gal/min (72 L/min) |
