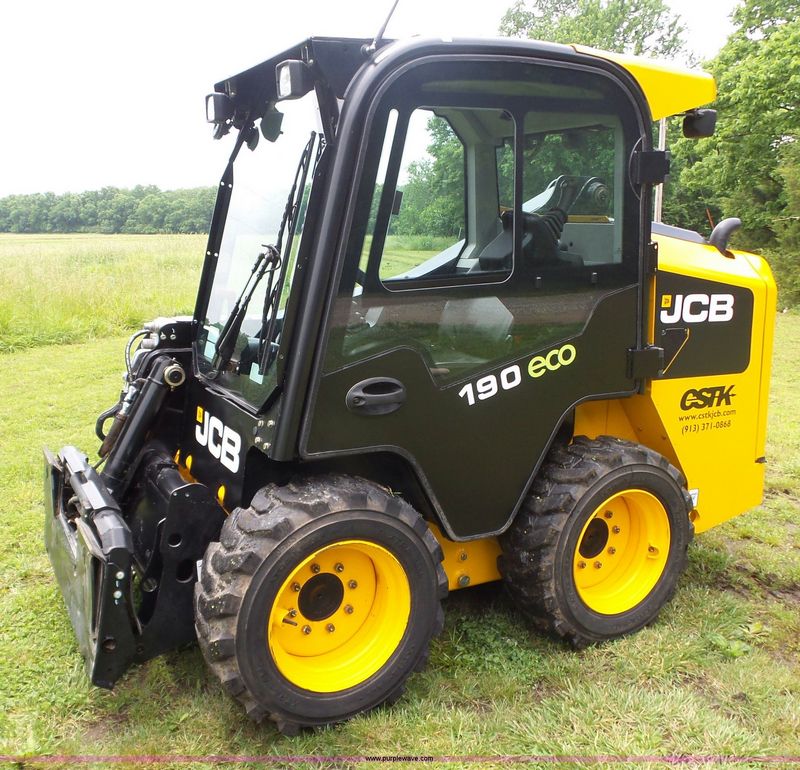

JCB 190
Browse All JCB or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 11.49 ft in (3500 mm) |
| Width Over Tires | 5.55 ft in (1691 mm) |
| Height To Top Of Cab | 6.61 ft in (2014 mm) |
| Wheelbase | 3.7 ft in (1126 mm) |
| Length W/O Bucket | 8.19 ft in (2496 mm) |
| Clearance At Max Lift And Dump | 7.95 ft in (2423 mm) |
| Reach At Max Lift And Dump | 24.93 in (633 mm) |
| Turning Radius From Center - Machine Rear | 65.52 in (1664 mm) |
| Turning Radius From Center - Inc Bucket | 86.58 in (2199 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Model | 1104C-44 |
| Gross Power | 80 hp (59.7 kw) |
| Net Power | 70 hp (52.2 kw) |
| Power Measured @ | 2200 rpm |
| Aspiration | Natural aspirated |
| Displacement | 244.1 cu in (4 L) |
Operational
| Operational Weight | 7717 lb (3500.4 kg) |
| Fuel Capacity | 28.2 gal (106.8 L) |
| Cooling System Fluid Capacity | 3.9 gal (14.8 L) |
| Engine Oil Fluid Capacity | 2.3 gal (8.6 L) |
| Hydraulic System Fluid Capacity | 9.2 gal (34.9 L) |
| Max Speed | 6.9 mph (11.2 km/h) |
| Chain Box Fluid Capacity - Each Side | 3.3 gal (12.5 L) |
| Tire Size | 12 x 16.5 - 10 pr |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 72 amps |
Loader
| Breakout Force | 4387.2 lb (1990 kg) |
| Operating Load Rating | 1985 lb (900.4 kg) |
| Tipping Angle | 3969 degrees |
| Bucket Capacity | 0.7 yd3 (0.5 m3) |
Hydraulic
| Pump Type | Hydrostatic drive pumps |
| Pump Flow Capacity | 20 gal/min (75.8 L/min) |
| Relief Valve Pressure | 2682 psi (18491.8 kPa) |
