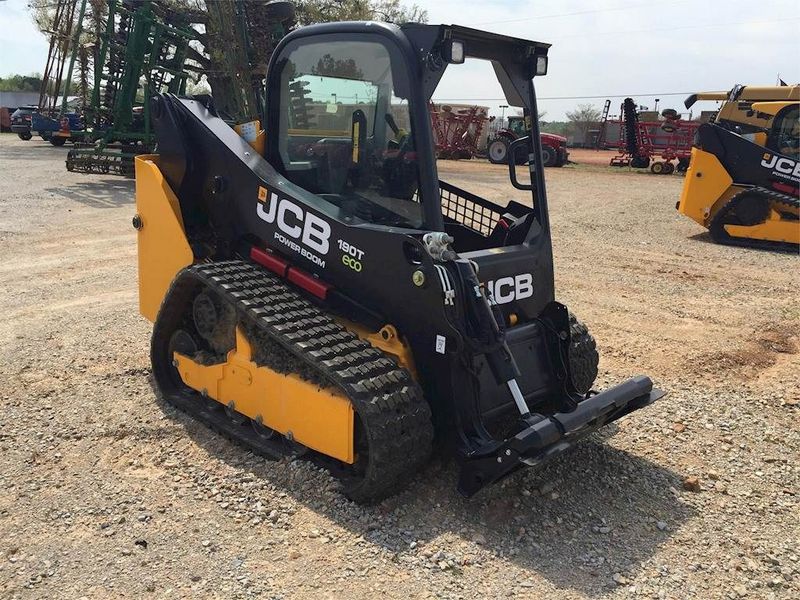

JCB 190T
Browse All JCB or Multi Terrain Loader Models
Contents:
Dimensions
| Width Over Tracks | 6.01 ft in (1829 mm) |
| Height To Top Of Cab | 6.66 ft in (2029 mm) |
| Ground Clearance | 10.99 in (279 mm) |
| Clearance At Max Lift And Dump | 8.01 ft in (2439 mm) |
| Reach At Max Lift And Dump | 2.15 ft in (655 mm) |
| Turning Radius From Center - Machine Rear | 65.52 in (1664 mm) |
| Length With Bucket | 11.49 ft in (3500 mm) |
| Length With Out Bucket | 7.79 ft in (2373 mm) |
| Turning Radius From Center - Inc Bucket | 86.58 in (2199 mm) |
Undercarriage
| Length Of Track On Ground | 4.99 ft in (1519 mm) |
| Width Of Track | 12.6 in (320 mm) |
| Ground Pressure | 4.8 psi (33.1 kPa) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2257 |
| Gross Power | 80 hp (59.7 kw) |
| Net Power | 70 hp (52.2 kw) |
| Power Measured @ | 2200 rpm |
| Peak Torque | 212 lb ft (287.5 Nm) |
| Torque Measured @ | 1200 rpm |
| Displacement | 244.1 cu in (4 L) |
| Aspiration | naturally aspirated |
Operational
| Operating Weight | 9700.4 lb (4400 kg) |
| Cooling System Fluid Capacity | 4 gal (15 L) |
| Engine Oil Capacity | 2.9 gal (10.8 L) |
| Fuel Capacity | 28.3 gal (107 L) |
| Hydraulic System Fluid Capacity | 9.3 gal (35 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 72 amps |
| Max Speed - High Range | 6.3 mph (10.1 km/h) |
Loader
| Operating Load | 1984.2 lb (900 kg) |
| Tipping Angle | 5820.3 degrees |
| Bucket Capacity | 0.7 yd3 (0.5 m3) |
Hydraulic
| Pump Type | hydrostatic drive pumps |
| Pump Flow | 20.1 gal/min (76 L/min) |
| Relief Valve Pressure | 2682 psi (18491.8 kPa) |
