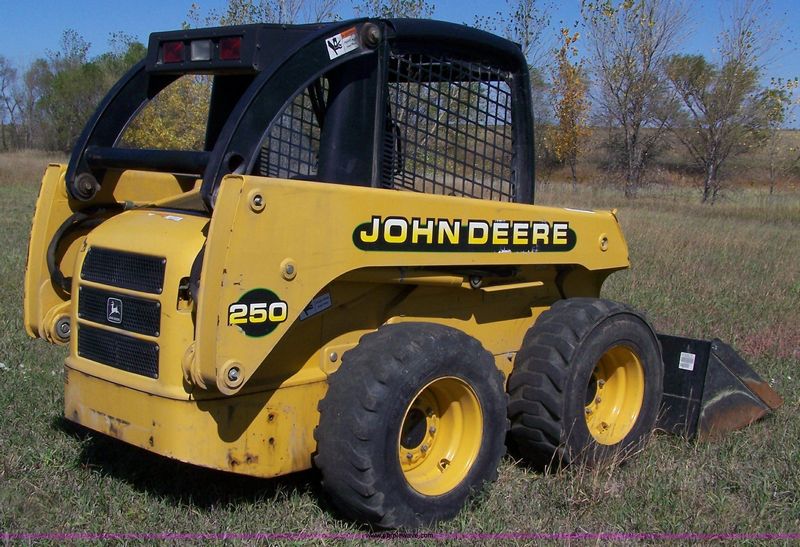

John Deere 250
Browse All John Deere or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 10.49 ft in (3196 mm) |
| Width Over Tires | 5.83 ft in (1776 mm) |
| Ground Clearance | 9.6 in (244 mm) |
| Height To Top Of Cab | 6.4 ft in (1950 mm) |
| Wheelbase | 3.53 ft in (1075 mm) |
| Length W/O Bucket | 8.51 ft in (2591 mm) |
| Clearance At Max Lift And Dump | 7.52 ft in (2290 mm) |
| Reach At Max Lift And Dump | 28.1 in (715 mm) |
| Turning Radius From Center - Machine Rear | 61.4 in (1559 mm) |
| Turning Radius From Center - Inc Bucket | 78.91 in (2004 mm) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2240 |
| Engine Model | 3029T |
| Gross Power | 64.4 hp (48 kw) |
| Net Power | 61 hp (45.5 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 179 cu in (2.9 L) |
Operational
| Operational Weight | 6250 lb (2835 kg) |
| Fuel Capacity | 15 gal (57 L) |
| Cooling System Fluid Capacity | 2.8 gal (10.6 L) |
| Max Speed | 8.5 mph (13.7 km/h) |
| Hydraulic System Fluid Capacity | 6 gal (23 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 55 amps |
Loader
| Breakout Force | 5500 lb (2495 kg) |
| Operating Load Rating | 1750 lb (794 kg) |
| Tipping Angle | 3600 degrees |
Hydraulic
| Pump Type | Hydrostatic |
| Pump Flow Capacity | 17.6 gal/min (66.6 L/min) |
| Relief Valve Pressure | 3100 psi (21374 kPa) |
