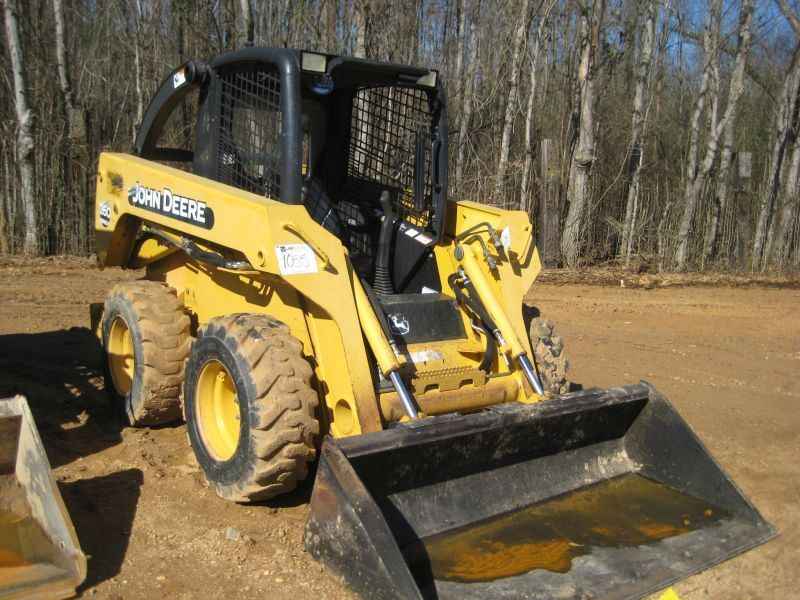

John Deere 260
Browse All John Deere or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 11.5 ft in (3504 mm) |
| Width Over Tires | 6.35 ft in (1935 mm) |
| Ground Clearance | 11 in (280 mm) |
| Height To Top Of Cab | 6.91 ft in (2105 mm) |
| Wheelbase | 3.97 ft in (1209 mm) |
| Length W/O Bucket | 9.59 ft in (2921 mm) |
| Clearance At Max Lift And Dump | 8.51 ft in (2591 mm) |
| Reach At Max Lift And Dump | 32 in (813 mm) |
| Turning Radius From Center - Machine Rear | 69 in (1752 mm) |
| Turning Radius From Center - Inc Bucket | 83.7 in (2126 mm) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2240 |
| Engine Model | 3029T |
| Gross Power | 72.4 hp (54 kw) |
| Net Power | 69 hp (51.5 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 179 cu in (3 L) |
Operational
| Operational Weight | 8250 lb (3742 kg) |
| Fuel Capacity | 20 gal (76 L) |
| Cooling System Fluid Capacity | 2.9 gal (10.6 L) |
| Hydraulic System Fluid Capacity | 9 gal (34.1 L) |
| Max Speed | 12 mph (19.3 km/h) |
| Operating Speed | 7.1 mph (11.3 km/h) |
| Tire Size | 14x17.5 SKS. 12PR |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 55 amps |
Loader
| Breakout Force | 7500 lb (3409 kg) |
| Operating Load Rating | 2400 lb (1089 kg) |
| Tipping Angle | 5000 degrees |
Hydraulic
| Pump Type | 3-spoon open center |
| Pump Flow Capacity | 33.1 gal/min (125.3 L/min) |
| Relief Valve Pressure | 3100 psi (23174 kPa) |
