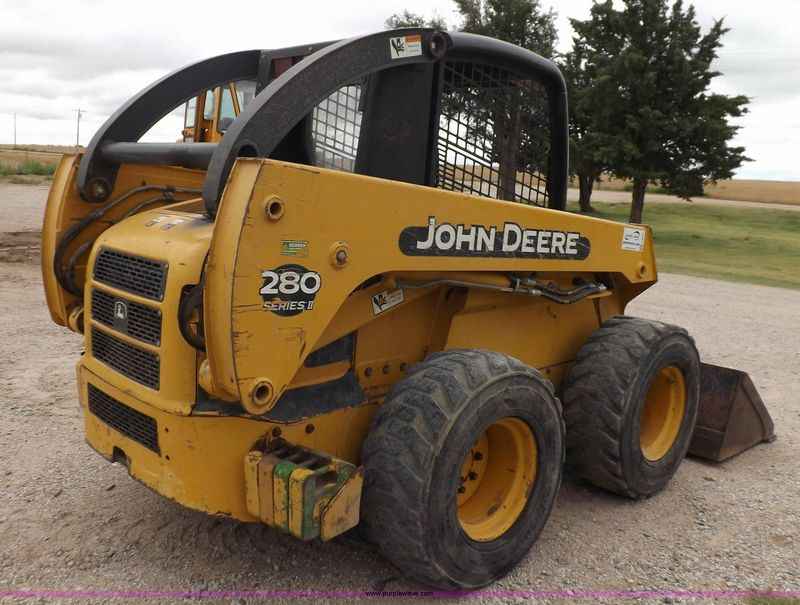

John Deere 280
Browse All John Deere or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 11.5 ft in (3504 mm) |
| Width Over Tires | 6.5 ft in (1981 mm) |
| Ground Clearance | 9.5 in (241 mm) |
| Height To Top Of Cab | 6.91 ft in (2105 mm) |
| Wheelbase | 4.06 ft in (1235 mm) |
| Length W/O Bucket | 9.59 ft in (2921 mm) |
| Clearance At Max Lift And Dump | 8.51 ft in (2591 mm) |
| Reach At Max Lift And Dump | 32 in (813 mm) |
| Turning Radius From Center - Machine Rear | 69 in (1752 mm) |
| Turning Radius From Center - Inc Bucket | 83.7 in (2126 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Engine Model | 4045T |
| Gross Power | 90 hp (67.1 kw) |
| Net Power | 85 hp (63.4 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 276 cu in (4.6 L) |
Operational
| Operational Weight | 9200 lb (4173 kg) |
| Fuel Capacity | 24 gal (91 L) |
| Cooling System Fluid Capacity | 3.6 gal (13.4 L) |
| Hydraulic System Fluid Capacity | 9 gal (34.1 L) |
| Max Speed | 12 mph (19.3 km/h) |
| Operating Speed | 7 mph (11.3 km/h) |
| Tire Size | 14x17.5 Haulers, 14PR |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 55 amps |
Loader
| Breakout Force | 11600 lb (5262 kg) |
| Operating Load Rating | 3200 lb (1451 kg) |
| Tipping Angle | 7000 degrees |
Hydraulic
| Pump Type | 3-spool open center |
| Pump Flow Capacity | 21.3 gal/min (80.7 L/min) |
| Relief Valve Pressure | 3100 psi (23174 kPa) |
