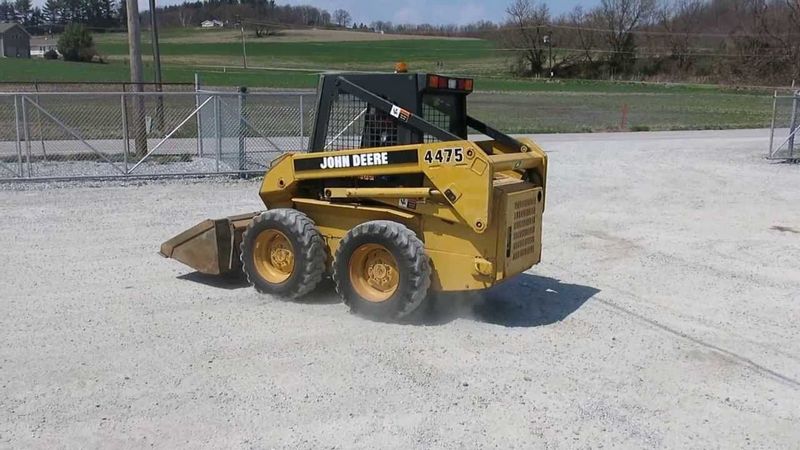

John Deere 4475
Browse All John Deere or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 10.01 ft in (3050 mm) |
| Ground Clearance | 8.27 in (210 mm) |
| Height To Top Of Cab | 6.04 ft in (1840 mm) |
| Wheelbase | 31.17 ft in (9500 mm) |
| Length W/O Bucket | 8.04 ft in (2450 mm) |
| Clearance At Max Lift And Dump | 7.32 ft in (2230 mm) |
| Reach At Max Lift And Dump | 20.25 in (514.35 mm) |
| Turning Radius From Center - Machine Rear | 45 in (1143 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Engine Model | Series 220 |
| Gross Power | 32 hp (23.9 kw) |
| Net Power | 31 hp (23.2 kw) |
| Power Measured @ | 3000 rpm |
| Displacement | 91.3 cu in (1.5 L) |
Operational
| Operational Weight | 4360 lb (1977.7 kg) |
| Fuel Capacity | 12 gal (45.4 L) |
| Max Speed | 6.5 mph (10.4 km/h) |
| Operating Speed | 6.5 mph (10.4 km/h) |
| Operating Voltage | 12 V |
Loader
| Breakout Force | 2600 lb (1179 kg) |
| Operating Load Rating | 1250 lb (567 kg) |
| Tipping Angle | 1450 degrees |
| Bucket Capacity | 0.5 yd3 (0.4 m3) |
Hydraulic
| Pump Type | Open-center |
| Pump Flow Capacity | 11 gal/min (41.7 L/min) |
| Relief Valve Pressure | 2650 psi (18271 kPa) |
