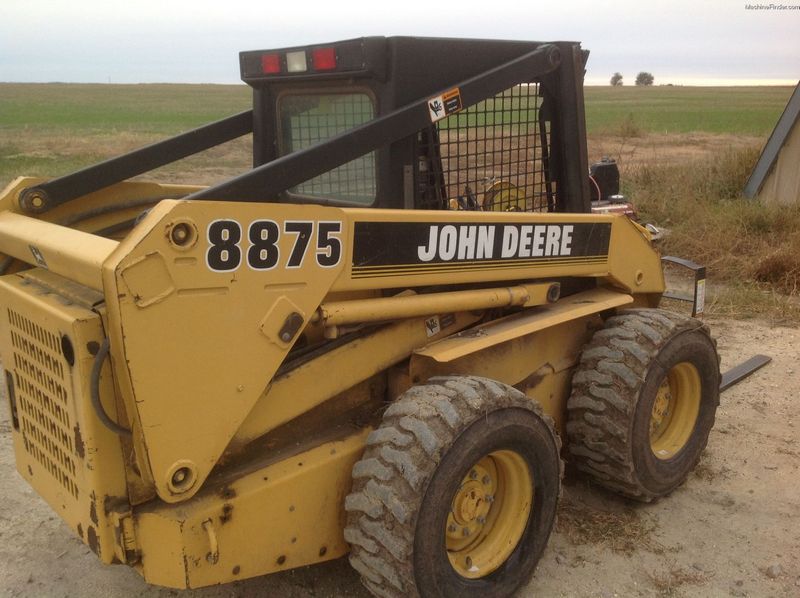

John Deere 8875
Browse All John Deere or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 11.84 ft in (3607 mm) |
| Width Over Tires | 5.76 ft in (1753 mm) |
| Ground Clearance | 8 in (203 mm) |
| Height To Top Of Cab | 6.01 ft in (1829 mm) |
| Wheelbase | 4 ft in (1219 mm) |
| Length W/O Bucket | 9.34 ft in (2845 mm) |
| Clearance At Max Lift And Dump | 8.09 ft in (2464 mm) |
| Reach At Max Lift And Dump | 30 in (762 mm) |
| Turning Radius From Center - Machine Rear | 69.25 in (1759 mm) |
| Turning Radius From Center - Inc Bucket | 82.75 in (2102 mm) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2240 |
| Engine Model | 3029T |
| Gross Power | 64 hp (47.8 kw) |
| Net Power | 61 hp (45.5 kw) |
| Power Measured @ | 2100 rpm |
| Aspiration | Turbocharged |
| Displacement | 177 cu in (3 L) |
Operational
| Operational Weight | 7004 lb (3177 kg) |
| Fuel Capacity | 18.8 gal (71.2 L) |
| Cooling System Fluid Capacity | 4 gal (15.1 L) |
| Engine Oil Fluid Capacity | 2.3 gal (8.5 L) |
| Max Speed | 12.1 mph (19.6 km/h) |
| Hydraulic System Fluid Capacity | 6.8 gal (25.5 L) |
| Operating Speed | 12.1 mph (19.6 km/h) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 55 amps |
Loader
| Breakout Force | 5203 lb (2362 kg) |
| Operating Load Rating | 2352 lb (1068 kg) |
| Tipping Angle | 6284 degrees |
Hydraulic
| Pump Type | 3 spool open-center |
| Pump Flow Capacity | 17.6 gal/min (67.8 L/min) |
| Relief Valve Pressure | 2600 psi (17926 kPa) |
