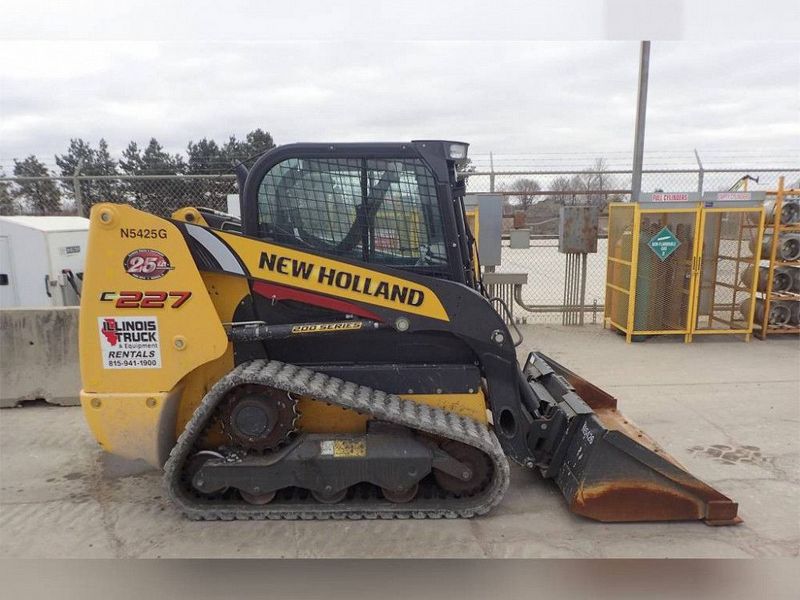

New Holland C227
Browse All New Holland or Skid Steer Loader Models
Contents:
Dimensions
| Ground Clearance | 8 in (203 mm) |
| Bottom Of Level Bucket, Fully Raised | 105.08 in (2669 mm) |
| Bucket Hinge Pin | 123 in (3124 mm) |
| Clearance Circle Rear | 62.96 in (1599 mm) |
| Clearance Circle Without Bucke | 50.75 in (1289 mm) |
| Dump Reach - General Purpose | 22.37 in (568 mm) |
| Ground Pressure | 9 psi (62.06 kPa) |
| Overall Width | 65.99 in (1676 mm) |
| Rollback, Bucket At Full Height | 99 degrees |
| Rollback, Bucket On Ground | 31 degrees |
| Top Of Rops | 78.67 in (1998 mm) |
| Angle Of Departure | 32 degrees |
| Track On Ground | 55.87 in (1419 mm) |
Engine
| Horsepower, Net-Sae J1349 | 68 hp (50.8 kw) |
| Fuel Injection | HPCR Direct |
| Horsepower Per Sae J1349 Gross | 74 hp (55.2 kw) |
| Engine Model | F5H FL463A |
| Max Torque | 232 lb ft (314.6 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 207.5 cu in (3.4 L) |
| Bore | 3.9 in (99 mm) |
| Stroke | 4.3 in (109 mm) |
Capacities
| Engine Oil W/ Filter Change | 2.3 gal (8.5 L) |
| Fuel Tank | 19.6 gal (73.9 L) |
| System Capacity With Filter | 8.6 gal (32.2 L) |
Performance
| Rated Operating Load, 35% Tip | 4166.8 lb (1890 kg) |
| Tipping Load | 5399.2 lb (2449 kg) |
| Operating Weight | 8267.4 lb (3750 kg) |
| Breakout Force, Bucket Cylinder | 7270 lb (32.4 kN) |
| Breakout Force, Lift Cylinder | 6069.9 lb (27 kN) |
| Rated Operating Load, 50% Tip | 2700.7 lb (1225 kg) |
Power Train
| Travel Speed, Low Range | 5.1 mph (8.2 km/h) |
| Travel Speed, High Range | 7.6 mph (12.2 km/h) |
Hydraulic System
| Optional High Flow | 324 gal/min (1226.5 L/min) |
| Relief Valve Pressure | 3046 psi (21001.5 kPa) |
| Pump Flow | 24.2 gal/min (91.7 L/min) |
