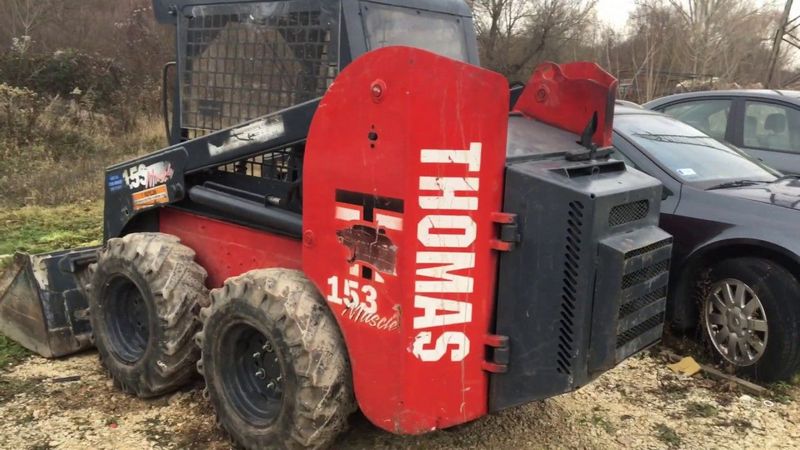

Thomas 153
Browse All Thomas or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 10.65 ft in (3246 mm) |
| Width Over Tires | 4.8 ft in (1461 mm) |
| Ground Clearance | 7.5 in (190.5 mm) |
| Height To Top Of Cab | 6.13 ft in (1867 mm) |
| Wheelbase | 2.92 ft in (889 mm) |
| Length W/O Bucket | 8.71 ft in (2652 mm) |
| Clearance At Max Lift And Dump | 7.49 ft in (2281 mm) |
| Reach At Max Lift And Dump | 28 in (711 mm) |
| Turning Radius From Center - Machine Rear | 48 in (1219 mm) |
| Turning Radius From Center - Inc Bucket | 72.6 in (1844 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2334 |
| Engine Model | V2203E |
| Gross Power | 50 hp (37.3 kw) |
| Power Measured @ | 2800 rpm |
| Displacement | 134 cu in (2.2 L) |
Operational
| Operational Weight | 5520 lb (2503.9 kg) |
| Fuel Capacity | 16.8 gal (63.6 L) |
| Hydraulic System Fluid Capacity | 16.6 gal (62.9 L) |
| Operating Speed | 6 mph (9.7 km/h) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
Loader
| Breakout Force | 4150 lb (1882.5 kg) |
| Operating Load Rating | 1500 lb (680.4 kg) |
| Tipping Angle | 3000 degrees |
| Bucket Capacity | 0.5 yd3 (0.4 m3) |
Hydraulic
| Pump Type | Hydroststic |
| Pump Flow Capacity | 8 gal/min (30.3 L/min) |
| Relief Valve Pressure | 2400 psi (16547.5 kPa) |
