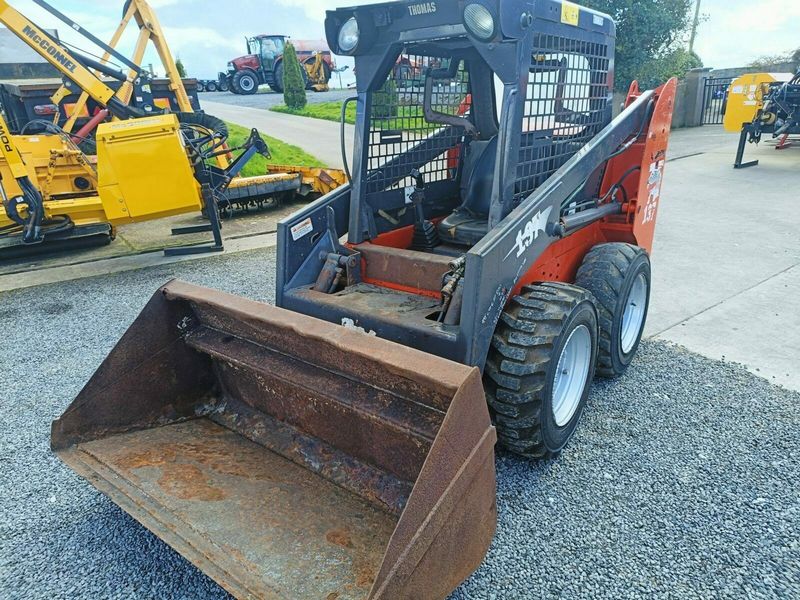

Thomas 137
Browse All Thomas or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 10.65 ft in (3246 mm) |
| Width Over Tires | 4.8 ft in (1461 mm) |
| Ground Clearance | 7.52 in (191 mm) |
| Height To Top Of Cab | 6.13 ft in (1867 mm) |
| Wheelbase | 2.92 ft in (889 mm) |
| Length W/O Bucket | 8.71 ft in (2652 mm) |
| Clearance At Max Lift And Dump | 7.49 ft in (2281 mm) |
| Reach At Max Lift And Dump | 23.82 in (605 mm) |
| Turning Radius From Center - Machine Rear | 36.3 in (922 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2334 |
| Engine Model | V1903E |
| Gross Power | 43 hp (32.1 kw) |
| Power Measured @ | 2800 rpm |
| Displacement | 113.3 cu in (1.9 L) |
Operational
| Operational Weight | 5350 lb (2426.8 kg) |
| Fuel Capacity | 17 gal (64 L) |
| Max Speed | 6.3 mph (10 km/h) |
| Hydraulic System Fluid Capacity | 8.1 gal (30.3 L) |
| Tire Size | 10.00x16.5 |
| Alternator Supplied Amperage | 40 amps |
Loader
| Breakout Force | 3800 lb (1723.7 kg) |
| Operating Load Rating | 1300 lb (589.7 kg) |
| Tipping Angle | 2700 degrees |
| Bucket Capacity | 0.4 yd3 (0.3 m3) |
Hydraulic
| Pump Flow Capacity | 16.6 gal/min (62.9 L/min) |
| Relief Valve Pressure | 2400 psi (16547.5 kPa) |
