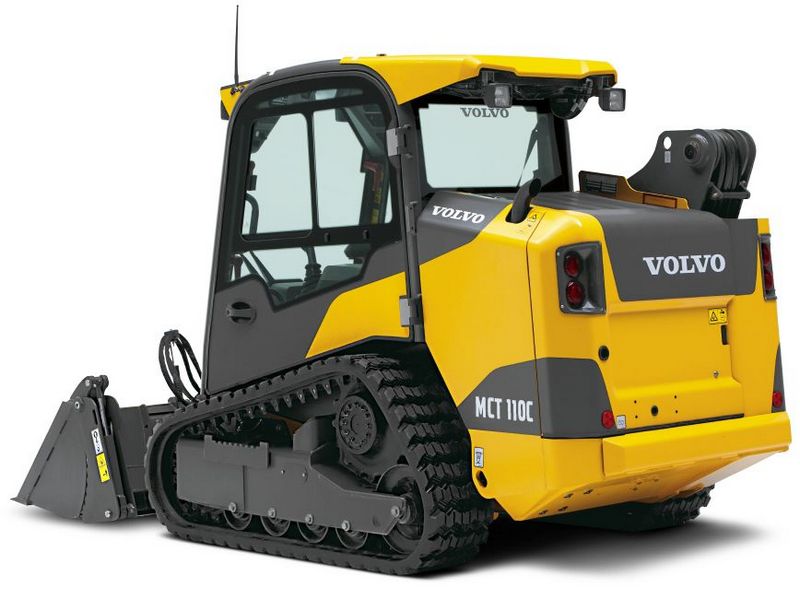

Volvo MCT110C
Browse All Volvo or Skid Steer Loader Models
Contents:
Dimensions
| Ground Clearance | 9.77 in (248 mm) |
| Wheelbase | 6.89 ft in (2100 mm) |
| Dump Angle | 42 degrees |
| Dump Height | 7.94 ft in (2420 mm) |
| Dump Reach | 23.04 in (585 mm) |
| Height To Hinge Pin | 125.2 in (3180 mm) |
| Angle Of Departure | 28.7 degrees |
| Overall Length (L/Bucket) | 9.65 ft in (2940 mm) |
| Overall Length (W/Bucket) | 12.11 ft in (3690 mm) |
| Turning Radius | 5.78 ft in (1760 mm) |
| Turning Radius Front L/Bucket | 4.86 ft in (1480 mm) |
| Turning Radius Front W/Bucket | 7.94 ft in (2420 mm) |
| Overall Height | 6.83 ft in (2080 mm) |
| Attachment Roll Back Angle | 30 degrees |
Speeds
| Single Speed | 6.2 mph (10 km/h) |
Engine
| Starter | 5.7 hp (4.2 kw) |
| Gross Horsepower – Sae J1995 | 73.8 hp (55.1 kw) |
| Battery | 12 - 109 (V - Ah) |
| Number Of Cylinders | 4 |
| Engine Model | TCAE - 55 |
| Net Power | 72.6 hp (54.2 kw) |
| Max Torque | 295.1 lb ft (400 Nm) |
| Aspiration | Turbo |
| Fuel Type | Diesel |
| Displacement | 151.4 cu in (2.5 L) |
| Alternator | 342000 amps |
Capacities
| Hydraulic Oil Reservoir | 6.9 gal (26 L) |
| Engine Oil W/ Filter Change | 4 gal (15 L) |
| Fuel Tank | 27.3 gal (103 L) |
| Cooling System | 4.1 gal (15.5 L) |
| Tipping Load | 6426.5 lb (2915 kg) |
| Hydraulic System | 15.9 gal (60 L) |
Performance
| Lift Arm Path | Radial |
| Rated Operating Load, 35% Tip | 2251 lb (1021 kg) |
| Curl | 1.4 sec |
| Dump | 1.8 sec |
| Lower (Power Down) | 2.3 sec |
| Raise (Lifting) | 3.5 sec |
Loader
| Standard Hydraulic Pump Output | 23.8 gal/min (90 L/min) |
| High Flow Pump Output | 33.1 gal/min (125 L/min) |
| System Pressure | 3335 psi (22994 kPa) |
Weights
| Weight | 10229.5 lb (4640 kg) |
Loader
| Bucket Width | 78 in (1980 mm) |
Bucket
| Multi Purpose Bucket Width | 6.1 ft in (1829 mm) |
| General Purpose Bucket Width | 6.1 ft in (1829 mm) |
| Breakout Force, Curl | 5699 lb (2585 kg) |
| Breakout Force, Lift | 5884.2 lb (2669 kg) |
| Landscape Bucket Width | 6.1 ft in (1829 mm) |
| General Purpose Bucket Length | 2.7 ft in (800 mm) |
| Landscape Bucket Length | 3.2 ft in (953 mm) |
| Multi Purpose Bucket Length | 3.2 ft in (953 mm) |
| General Purpose Bucket Height | 1.8 ft in (521 mm) |
| Landscape Bucket Height | 1.8 ft in (521 mm) |
| Multi Purpose Bucket Height | 2.3 ft in (701 mm) |
| Landscape Bucket Weight | 0.4 in2 (232 mm2) |
| General Purpose Bucket Weight | 474 lb (215 kg) |
| Multi Purpose Bucket Weight | 776.1 lb (352 kg) |
| Multi Purpose Bucket Heaped Cap | 0.8 yd3 (0.6 m3) |
| Landscape Bucket Heaped Cap | 0.8 yd3 (0.6 m3) |
| General Purpose Bucket Heaped Cap | 0.6 yd3 (0.5 m3) |
